Hey there! As a supplier of the WRe526 Thermocouple, I've seen my fair share of issues with these nifty devices. Thermocouples are super important for measuring temperature in all sorts of industrial and scientific settings. The WRe526 Thermocouple, in particular, is known for its reliability and accuracy. But like any piece of equipment, it can run into problems from time to time. In this blog post, I'm gonna walk you through how to troubleshoot some of the most common problems you might encounter with the WRe526 Thermocouple.
1. No Temperature Reading
One of the most frustrating issues is when you don't get any temperature reading at all. This could be due to a few different things.
Broken or Loose Wires
The first thing you should check is the wiring. Over time, the wires can get damaged, especially if they're exposed to harsh conditions. Look for any visible signs of wear and tear, like frayed or broken wires. Also, make sure the wires are securely connected to the thermocouple and the measuring device. If you find a broken wire, you'll need to replace it. For loose connections, simply tighten them up.
Faulty Measuring Device
Sometimes, the problem isn't with the thermocouple itself but with the measuring device. Try using a different measuring device to see if you get a reading. If you do, then the original measuring device is likely the culprit. You may need to have it repaired or replaced.
Thermocouple Damage
In some cases, the thermocouple itself might be damaged. This could be due to physical impact, corrosion, or exposure to high temperatures. If you suspect the thermocouple is damaged, you can test it using a multimeter. Set the multimeter to the appropriate voltage setting and measure the voltage output of the thermocouple. If the voltage is significantly different from what it should be, then the thermocouple is probably bad and needs to be replaced.
2. Inaccurate Temperature Readings
Another common problem is getting inaccurate temperature readings. This can be a real headache, especially if you're relying on the thermocouple for critical measurements.
Calibration Issues
Thermocouples need to be calibrated regularly to ensure accurate readings. Over time, the calibration can drift, leading to inaccurate results. Check the calibration of your thermocouple using a known reference temperature. If the readings are off, you'll need to recalibrate the thermocouple. This can usually be done using a calibration device or by sending the thermocouple to a professional calibration service.
Environmental Factors
Environmental factors can also affect the accuracy of the thermocouple readings. For example, if the thermocouple is exposed to electromagnetic interference (EMI), it can cause the readings to be inaccurate. Try moving the thermocouple away from any sources of EMI, such as motors, transformers, or power lines. Also, make sure the thermocouple is installed correctly and is not in contact with any materials that could affect its performance.
Contamination
Contamination can also cause inaccurate readings. If the thermocouple is exposed to chemicals, dust, or other contaminants, it can affect its performance. Clean the thermocouple regularly using a mild solvent and a soft brush. Make sure to dry it thoroughly before using it again.
3. Erratic Temperature Readings
Erratic temperature readings can be a sign of a more serious problem. This could be due to a variety of factors, including electrical interference, mechanical vibration, or a malfunctioning thermocouple.
Electrical Interference
Electrical interference can cause the thermocouple readings to fluctuate wildly. As mentioned earlier, try moving the thermocouple away from any sources of EMI. You can also use shielded cables to reduce the effects of interference.
Mechanical Vibration
Mechanical vibration can also cause erratic readings. If the thermocouple is installed in an area with a lot of vibration, it can cause the wires to move and create a poor connection. Try mounting the thermocouple on a stable surface or using vibration isolation mounts to reduce the effects of vibration.
Malfunctioning Thermocouple
If you've ruled out all other possible causes, then the thermocouple itself might be malfunctioning. In this case, you'll need to replace the thermocouple.
4. Slow Response Time
A slow response time can be a problem, especially if you need to measure rapidly changing temperatures. This could be due to a few different things.
Thermowell Issues
If the thermocouple is installed in a thermowell, the thermowell could be causing the slow response time. Make sure the thermowell is the correct size and material for the application. Also, check for any blockages or debris inside the thermowell that could be affecting the heat transfer.
Thermocouple Design
The design of the thermocouple can also affect its response time. Some thermocouples are designed for faster response times than others. If you need a faster response time, consider upgrading to a thermocouple with a more suitable design.
Other Types of Thermocouples

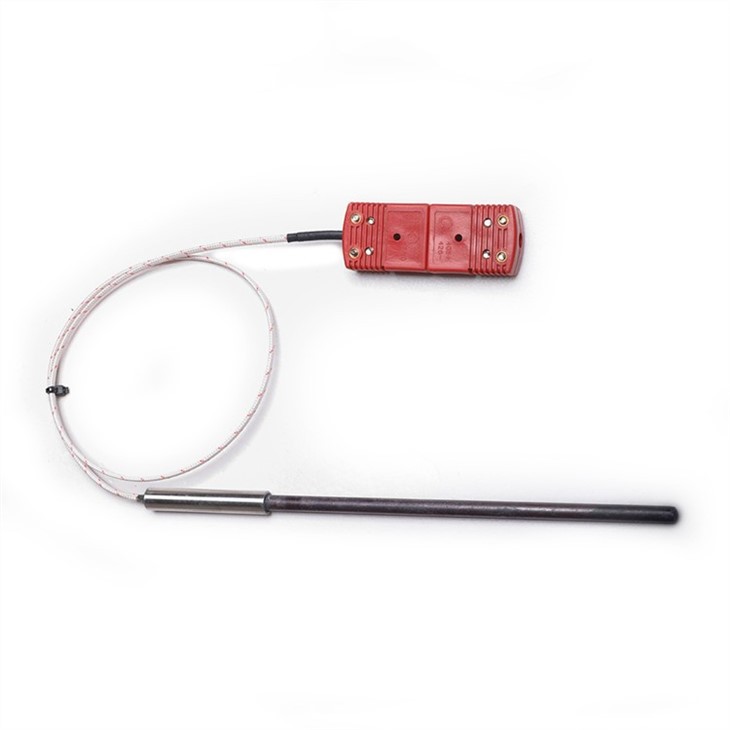

Before we wrap up, I'd like to mention a few other types of thermocouples that you might be interested in. You can check out the Platinum Rhodium Thermocouple, which is great for high-temperature applications. There's also the C Type Thermocouple, which is known for its wide temperature range and high accuracy. And if you're looking for a specific type, the S Type Thermocouple With Plug might be just what you need.
Conclusion
Troubleshooting common problems with the WRe526 Thermocouple isn't always easy, but by following these steps, you should be able to identify and fix most issues. Remember to always follow the manufacturer's instructions and safety guidelines when working with thermocouples. If you're still having problems after trying these troubleshooting steps, don't hesitate to reach out to us. We're here to help you get the most out of your thermocouples. Whether you need a replacement part, calibration services, or just some advice, we've got you covered. If you're in the market for a new thermocouple or need to restock your supply, we'd love to have a chat with you about your requirements. Just contact us to start the procurement discussion, and let's find the perfect thermocouple solution for your needs.
