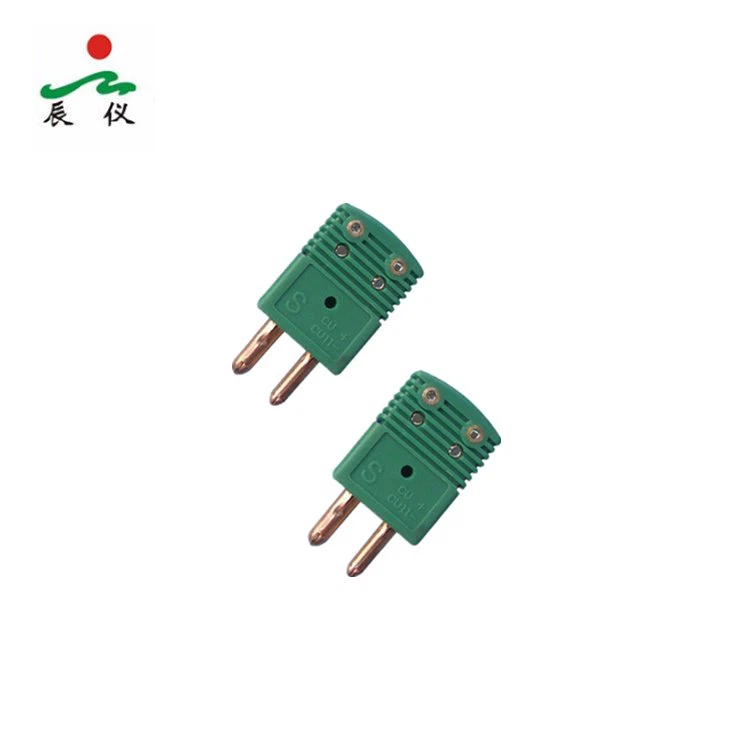

S Type Thermocouple Connector
Thermocouple connector is used for the terminal for thermocouple. Different mark has different color. It has mini type and standard type, you could choose according to your site condition.
Product Introduction
Thermocouple connectors are specifically designed to allow thermocouples to be quickly connected and disconnected from the extension wire. The connector pair is composed of a male plug and female jack. The male plug will have two pins for single thermocouples and four pins for dual thermocouples. RTD temperature sensors will have three pins. Thermocouple plugs and jacks are manufactured with thermocouple alloys to insure accuracy through out the thermocouple circuit. Thermocouple Type R, S, B connectors use compensating alloys.
Features:
1. Easy wire connection through sandwich construction
2. Polarized terminals guarantee correct polarity
3. Molded barriers to prevent short circuit of conductors
4. High accuracy compensated connections
Product Parameter
Type | Color | Conductor material |
K | Yellow (ANSI) or green (IEC) | NiCr-NiSi |
N | Green | NiCrSi-NiSiMg |
E | Purple | NiCr-CuNi |
J | Black | Fe-CuNi |
T | Blue | Cu-CuNi |
R/S | White or orange | Cu-CuNi |
PT100 | White | Cu/Ni |
Product Details
Factory Introduction
Workshop:
Warehouse:
Quality Certificates
Packing and Shipping
Delivery Details
FAQ
Q: What are your factory’s advantages?
A: 1) Rich experience: We have more than 20 years of experience in this industry. This means that we can preview issues with orders and products. Therefore, it will ensure that the risk of bad situations is reduced.
2) Point-to-point service: From consultation to product delivery, there are sales staff to serve you. During this process, you only need to discuss all issues with her, which can save a lot of time.
3) Design: We will recommend the most suitable products for customers according to drawings, temperature requirements and installation site.
4) Strict quality control: For each order, the quality control department will conduct strict inspections before shipment to prevent quality degradation.
5) Transportation: We have freight forwarders, so we can guarantee faster delivery and ensure that the goods are well protected.
