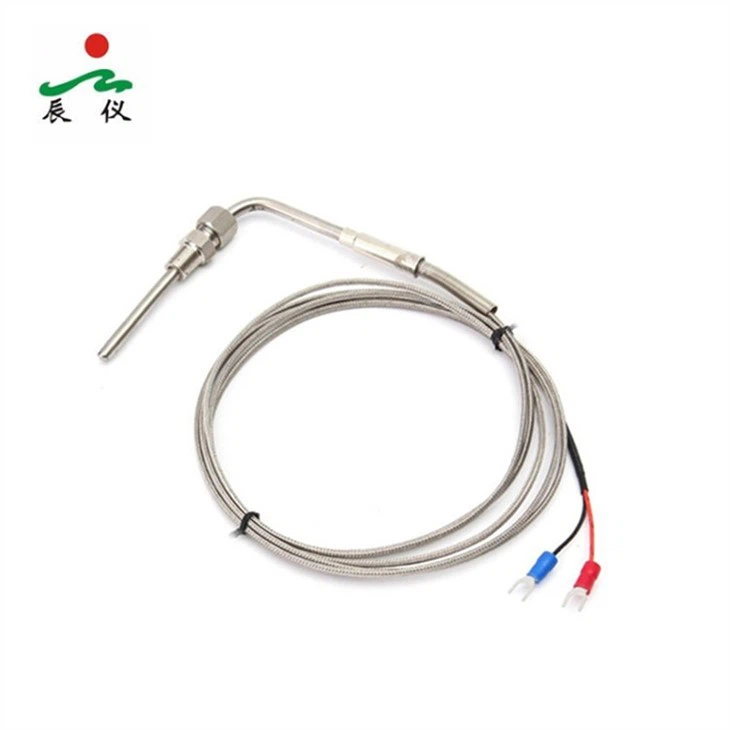

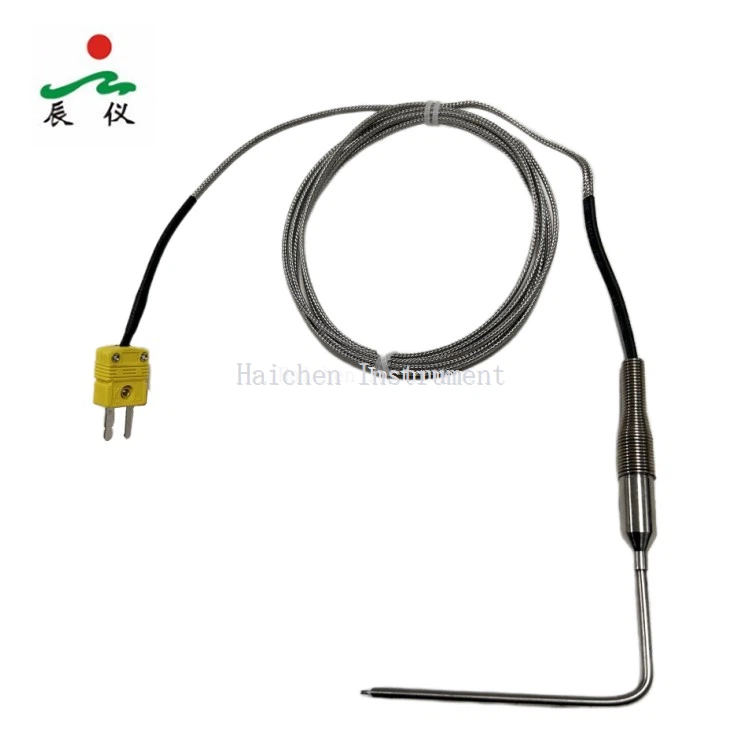

K Type Exhaust Gas Temp Probe
EGT thermocouple sensor is mainly for Auto industry and testing temperature of exhaust gas. The common used mark is K type, with different sheath material, it could test temperature up to 1000C.
Products Description
The EGT Thermocouple Probe is made from high-quality materials, which ensure its durability and long-lasting performance. It features a stainless steel sheath, which is resistant to corrosion and able to withstand extreme temperatures. Moreover, our product is designed with a soft, flexible cable that allows for easy installation and convenient use.
If need to resist high temperature, it is suggested to choose sheath material Inconel600 or GH3039.
If need to resist corrosion, it is suggested to use SS316L.
Products Parameter
|
Mark |
K |
|
Temperature range |
0 to 1000 ℃ |
|
Probe type |
Mgo insulated |
|
Probe sheath material |
SS304/316 Inconel600/GH3039 |
|
Probe diameter |
3~8mm, other size customized |
|
Probe length |
Customized (cold point and hot point) |
|
Process connection |
Compression fittings (1/8'' NPT, 1/2''NPT or customized) Horse Clamp (30 to 50mm diameter and with a set of nut, olive, thread) None (without any accessories) |
|
Lead wire material |
Length customized, sheath material optional: PTFE/PVC/Fiberglass |
|
Terminal |
Mini or standard connector, jacks, ferrule connector |
|
Junction |
Exposed tip or ungrounded |
|
Application |
Auto industry |
Product feature
High-Quality Construction: The probe is constructed using high-quality materials, which ensure that they are resistant to wear and tear, and durable enough to withstand harsh conditions. This means that the probe can be used for extended periods, providing accurate readings consistently.
Versatile Use: The probe can be used on a wide range of engines, including diesel and gasoline engines, making it an ideal solution for various industries.
Plug and Play Installation: The probe is easy to install, and you don't need any specialized tools or technical knowledge. You can quickly and easily connect the probe to your data logger or monitor and start monitoring your engine's temperature.
Accurate and Precise: The probe is designed to deliver accurate and precise readings, ensuring that you have reliable data to work with to optimize your engine's performance.
Production advantages
EGT thermocouple is undoubtedly an innovative and reliable way to monitor your engine's temperature. With reliable and accurate data, you can optimize your engine's performance, reduce maintenance costs, and prolong the lifespan of your engine.
Whether you are an engine manufacturer or an engine operator, the K Type Exhaust Gas Temp Probe is an excellent investment that can significantly benefit your business. So why wait? Get your hands on the K Type Exhaust Gas Temp Probe today and start monitoring your engine temperature like a pro.
Products View
Company Profile
After years of independent research and development, Haichen now possesses strong production capacity, larger production scale, advanced testing equipment, professional technical team.
Our company has always been adhering to the business policy of "quality is the life of the enterprise, the user is our God", strict to product quality, and provide users with high-quality design, manufacturing, installation, debugging and top-ranking service for temperature sensors. After decades of continuous efforts and innovation, our customers are throughout the country in different field, and more we also exported to Europe, the Middle East, and Southeast Asia markets.
01
Strict Quality Control
For each order, the quality control department will conduct strict inspections before shipment to prevent quality degradation.
02
Rich Experience
We have more than 20 years of experience in this field, that we can preview issues with orders and products. Therefore, it will ensure that the risk of bad situations is reduced.
03
Design
We will recommend the most suitable products for customers according to drawings, temperature requirements and installation site.
04
Point-to-point service
From consultation to product delivery, there are sales staff to serve you. During this process, you only need to discuss all issues with her, which can save a lot of time.
Workshop
Warehouse
Certification
quality management system certificate ISO9001:2015
Explosion-proof Certificate for temperature transmitter
Explosion-proof Certificate for Thermocouple sensor
Explosion-proof Certificate for RTD Sensor
SIL functional safety certificate for temperature sensor
Packages for different products
Single packing for each product (with head)
Single pack for small product (without head)
Export standard carton
Delivery Detailes
We could choose delivery by Express (DHL/FedEx/TNT/ARAMEX), by Air, by Sea; or according to customer's requirement;
Products with storage, such as connector, common material for thermocouple, delivery in 1-2 workdays;
Products customized, according to material and quantity, delivery in 7~60 workdays.
do you have any question?
Is Haichen factory or trading company?
We are manufacturer and have 24 years' experience in temperature sensors. We keep exporting for more than 14 years.
To get an accurate price, what information should be provided?
Mark (K type, S type or Pt100),
Temperature range (0~200℃ or 0~1000℃),
Size information (probe diameter, length),
Material requirement (SS316? Inconel 600? or some special material)
Product picture or drawing is the best for us to understand what you need.
Is sample order available?
Yes, it is available, however, it's not free, you need to pay the freight cost.
What is term of price?
Usually we quote by EX-WORKS, if you need freight cost, please inform quantity and address in advance.
