6 Wire Pt100 RTD
6 Wire Pt100 RTD is a very simple and durable temperature sensors. It is come with different pairings of materials allowing for a very wide range of applications. The different compositions are standardized into thermocouple types. The different types are given letter names which are standardized across the industry.
Product Introduction
6 Wire Pt100 RTD manufactured in many different configurations for multitude of applications. Diameters, lengths, sheath material, lead lengths and sensor material are just a few of the variables that go into determining the style of thermocouple when manufactured. The main determining factors of what type thermocouple needs to be used in a application is temperature, environment, response time and accuracy. The junction of the thermocouple can be grounded, ungrounded or exposed. The thermocouple junction may be of many different styles, from tube type to a washer configuration. The lead length may vary depending on the distance of the temperature controller from the thermocouple sensor. The metal that the sensor is constructed of determines the type of thermocouple manufactured..
Product Parameter
Mark: pt100
Type: simplex or duplex
Temperature range: -200 to 600℃
Probe size: according to drawing, could be designed to be chips, blocks, shovel, screw, ring
Probe material: SS304/316
Process connection: fixed thread or movable thread (according to requirements)
Lead wire: customized length (PTFE/PVC/Fiberglass sheath)
Terminal: jacks or connectors
Mark | Nominal resistance (0°C) Ω | Temperature measuring range °C | Tolerance | R100/Row |
Pt10 | 10 | Ceramic elements: -200 ~ 600 Mica elements: -200 ~ 420 | Class A: ± (0.15+0.2%|t|) Class B: ± (0.3+0.2%|t|) | 1.3851 |
Pt100 | 100 | |||
Cu50 | 50 | -50 ~ 100 | ± (0.3+0.6%|t|) | 1.428 |
Cu100 | 100 |
Product Pictures
Factory Introduction

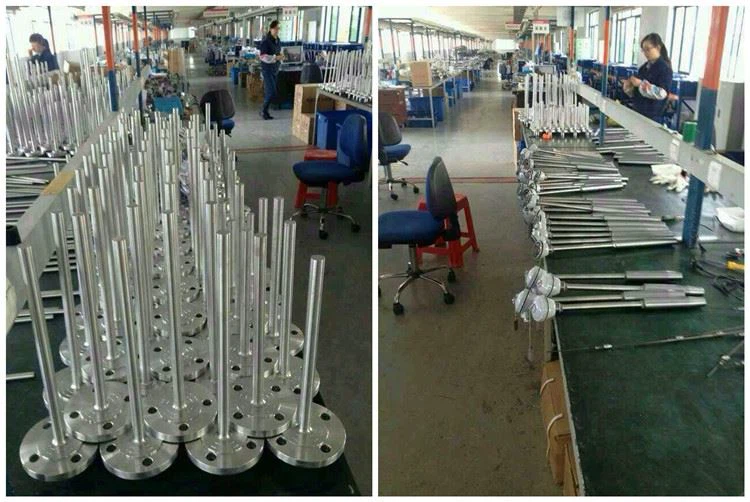

Workshop:

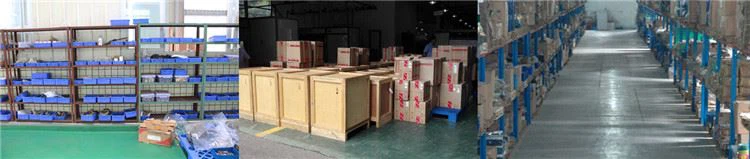

Warehouse:
Quality Certificates
Packing and Shipping
Delivery Details
FAQ
Q: Are you trading company or manufacturer?
A: We are factory with 20 years’ experience in the field of temperature sensor.
Q: How can I get a sample to check your quality?
A: For sample making, we will charge a sample fee, also the express cost.
Q: Where are the main markets for sales?
A: Mainland China, Thailand, USA, Russia, Vietnam, Singapore, Malaysia, Australia, Myanmar, Pakistan, Bahrain etc.
Q: What is the process of an order?
A: Send your detailed request → Feedback with quotation → Confirm price and some details → Provide PI → Make payment → Start production → Quality checking → Delivery→After service.
Q: Which payment do you have?
A: We have Trade Assurance (paid by Alibaba), Payoneer, TT, West Union and so on.
