Pt100 Surface RTD
Pt1000 4 Wire RTD is suitable for measuring the temperature of fixed surface, especially for steam turbine thrust bearing bush, water pipe temperature measurement of double water internal cooling generator, and also for bearing temperature measurement of large general-purpose units, fans, air compressors and other general-purpose machinery.
Chongqing Haichen Instrument Co., Ltd. is one of the leading manufacturers and suppliers of pt100 surface rtd in China, also supports customized service. Please feel free to buy advanced pt100 surface rtd for sale here from our factory. Quality products and reasonable price are available.
Products Description
Wire RTD sensor is one type of widely used industry thermometer, can be treated as standard thermometer. It mainly includes types of pt100, pt1000, Cu50, Cu100, with structures of assembly or sheath. For platinum RTD, the highest accuracy is ±0.1℃ (AA class), the highest using temperature is 600℃. For Copper resistance, the highest accuracy is ±0.3℃, the highest using temperature is 150℃. RTD with high accuracy and low price, is widely applied for kinds of industries production process that temperature requirement is below 600℃.
Products Parameter
Mark: pt100/pt200/pt500/pt1000 Type: simplex or duplex Temperature range: -200 to 600℃
Probe size: according to drawing, could be designed to be chips, blocks, shovel, screw, ring Probe material: SS304/316
Process connection: fixed thread or movable thread (according to requirements)
Lead wire: customized length (PTFE/PVC/Fiberglass sheath) Terminal: jacks or connectors
| Calibration |
Nominal resistance (0°C) Ω |
Temperature measuring range °C | Tolerance | R100/ Row |
|
Pt10 |
10 |
ceramic elements:-200 ~ 600 mica elements: -200 ~ 420 |
ClassA: ±(0.15+0.2%|t|) ClassB: ±(0.3+0.2%|t|) |
1.3851 |
|
Pt100 |
100 | |||
|
Cu50 |
50 |
-50~100 |
±(0.3+0.6%|t|) |
1.4280 |
|
Cu100 |
100 |

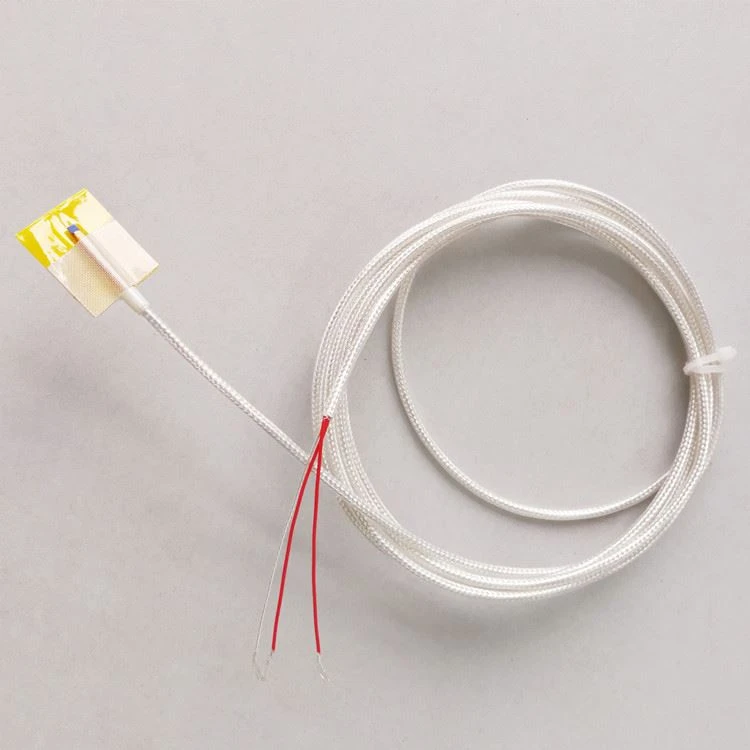

Products Pictures
Company information
 |
Chongqing Haichen Instrument Co., Ltd. was established in June 2000.
Our factory located in Chongqing City, we were in the field of temperature sensor since 2000. And we have more than 14 years experience of exporting. Our customers are throughout the world in different field, we have exported to Europe (Denmark, Italy), the Middle East (Pakistan, Bahrain), Southeast Asia (Vietnam, Thailand, Myanmar) and the Oceania (Australia, New Zealand).
Our main products include: Thermocouple Sensor, RTD Sensor, Bimetal Thermometer, Temperature Transmitter, Control Valve, Heaters And So On. Our company has always been adhering to the business policy of "quality is the life of the enterprise, the user is our God", strict to product quality, and provide users with high-quality design, manufacturing, installation, debugging and top-ranking service for temperature sensors. |
Company certificates
 |
 |
Packing and shipping
|
|
 packing for small ones packing for bigger ones packing in cases |
|
We could choose delivery by Express (DHL/FedEx/TNT/ARAMEX), by Air, by Sea; Products with storage, delivery in 1-2 workdays; Products custom-made, delivery in 7~60 workdays, it is according to quantity. |
FAQ
Q: Are you trading company or manufacturer?
A: We are factory with 20 years' experience in the field of temperature sensor. Our main products include thermocouple, thermal resistance, bimetal thermometer, temperature transmitter.
Q: For inquiry, what information should be provided?
A: Mark, temperature range, size information, material requirement, or detailed drawing.
Q: How can I get a sample to check your quality?
A: For sample making, we will charge a sample fee, also the express cost.
Q: Which payment do you have?
A: We have Trade Assurance (paid by Alibaba), Payoneer, TT, West Union and so on.
Q: Which ship way do you have?
A: We have a very low discount from FedEx, DHL, UPS and TNT. It will be helpful for your fast delivery and cheap shipping.
