Thin Film Element
Thin Film Element is used for thermal resistance as the key part.
Product Introduction
Thin film platinum resistance temperature detectors (Pt-RTD) consist of a thin film platinum deposited on a ceramic substrate. Thin film Pt-RTD’s provide cost advantages when compared to wire wound Pt-RTD’s because of their lower material cost factor..
Product Parameter
1. DIN EN 60751 (according to IEC 751)
2. Temperature coefficient TC = 3850 ppm/K
3. Ceramic dimension: 3.0*2.0*1.0 3.2*1.6*1.0 5.0*2.0*1.0 (L*W*H)
4. Lead wire length: 10mm
5. Lead wire material: ni-pt alloy
6. Specified current: 1mA
7. Max current: 2mA
8. Accuracy: 1/3B, A, B, 2B
Accuracy | Deviation error | Deviation resistace (0 °C) | (α) (Ohm/Ohm/deg.C) |
1/3B | +/-(0.1+0.0017t) | +/-0.04 Ohm | 0.003851+/-0.000004 |
A | +/-(0.15+0.002t) | +/-0.06 Ohm | 0.003851+/-0.000005 |
B | +/-(0.3+0.005t) | +/-0.12 Ohm | 0.003851+/-0.000012 |
2B | +/-(0.6+0.01t) | +/-0.25 Ohm | 0.003851+/-0.000024 |

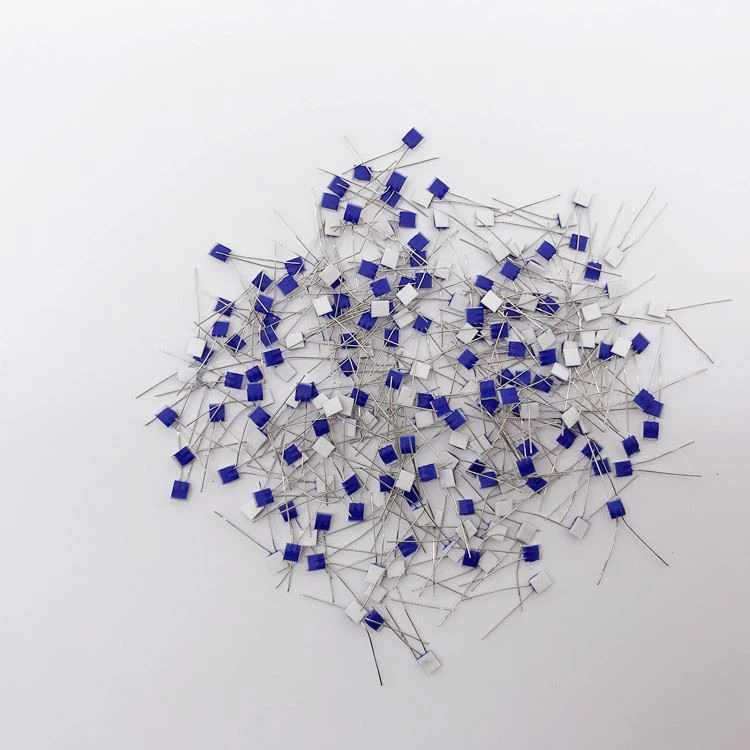

Product Pictures
Factory Introduction

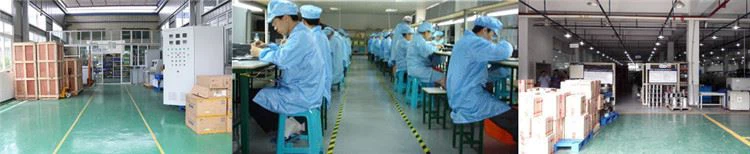

Workshop:

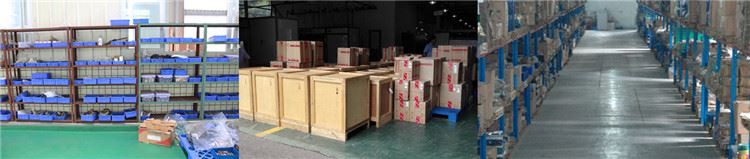

Warehouse:
