Bimetallic Type Temperature Gauge
WSS series industrial bimetallic thermometers are one kind of field measuring instruments that can measure temperature of middle and low range.
Product Introduction
WSS series industrial bimetal thermometers are field test industrial instruments, which are suitable for measuring medium and low temperature and can directly measure the temperature of gas, liquid and steam. They are widely used in petroleum, chemical, vessel, machinery, medical insurance, electric power and other industries, which are the replacement of glass thermometer products. Compared with thermocouple and RTD, they have the characteristics of field display, easy to use and low price.
Product Parameter
Temperature range | -80~600℃ |
Case material | Stainless steel or aluminium |
Dial diameter | φ60mm, φ100mm, φ150mm |
Probe length (mm) | 50~2000 |
Probe diameter | Φ6; Φ8; Φ10; Φ12 |
Type | Radial (Bottom Connection) Axial (Back Connection) Universal (Adjustable Angle) |
Accuracy | 1.5% |
Protection grade | IP55 |
Display | Mechanical display |
Connection | Thread and flange optional |
Electric contact | with upper and lower limit |
Pt100 sensor | with head or aviation plug |
Installation Method
Product Details
Factory Introduction

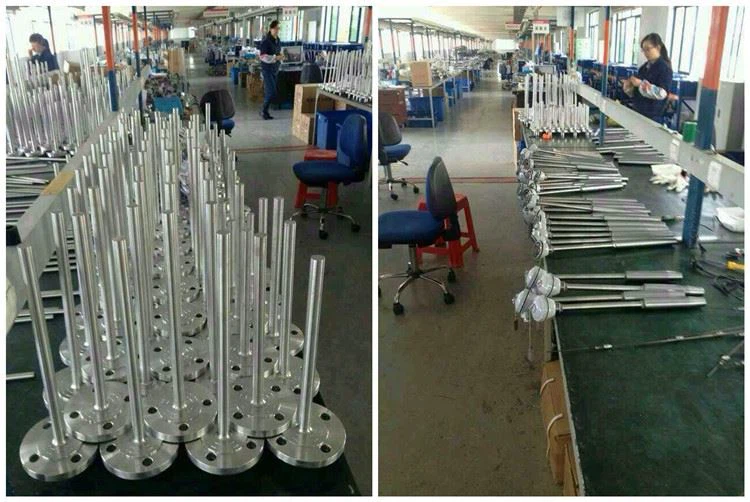

Workshop:

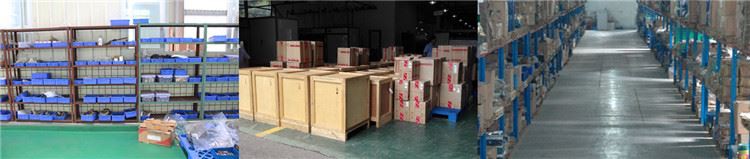

Warehouse:
Quality Certificates
Packing and Shipping
Delivery Details
FAQ
Q: Are you trading company or manufacturer?
A: We are factory with 20 years’ experience in the field of temperature sensor.
Q: Can you manufacture products according to my design?
A: Yes, please provide detailed drawing, and requirements for size and material.
Q: Do you accept sample order? Is it free or charge?
A: Yes, we could offer the samples but it’s not free and you have to pay the cost of freight.
Q: What is term of price?
A: Usually it is EX-WORKS, if need freight cost, please inform quantity and address in advance.
If large quantity and volume, we could quote by FOB price.
Q: After order, how long could I received the package?
A: After receiving the payment, we will delivery in 7~60 workdays, production time according to the quantity.
Q: What is term of payment?
A: Payment less than or equal to 10000USD, 100% T/T in advance.
Payment more than 10000USD, 50% T/T in advance, balance before delivery.
Q: How could I pay?
A: 1. Trade assurance on Alibaba
2. Western Union no bank charge
3. Payoneer is also a choice
