SS316 K Type Sheath Thermocouple

Name: China Customized SS316 K Type Sheath Thermocouple Suppliers Factory - Good Price - Haichen Instrument
Brand: Haichen
SKU: 159625163

Mineral insulated thermocouples have the outstanding features as the following: long and thin shape, quick response, vibration resistance, high-pressure resistance and long service life etc. Especially they are suitable for installing in where the pipelines are narrow and bent and meeting the special requirements for the quick response and miniaturization.

Send InquiryChat Now

Description

Products Introduction

MI thermocouple is a temperature-sensing device made up of two different metals. The sensing part of the device is a pair of wires with dissimilar metals that form a thermocouple. The other end of the device connects to the temperature display or measurement system. The thermocouple wires are embedded inside a mineral insulation that provides protection against harsh manufacturing and processing environments. They are matched with the display instrument, which can automatically detect or adjust the temperature of gas, liquid medium and solid surface and widely used in the field of petroleum, chemical industry, metallurgy machinery, power stations, textile industry, food industry, atomic, aviation and scientific research etc.

Graduation	K/N/E/J/T/S/R/B
Testing temperature range	0 to 1300 ℃
Type	Simplex (2 wires), Duplex (4 wires)
Probe sheath material	Stainless steel 304/316/310/321; High temperature alloy: Inconel600 GH3030/3039
Probe diameter	φ1mm~10mm (over 10mm customized)
Probe length	According to requirements
Process connection	Thread or flange (movable or fixed)
Terminal	waterproof/explosion-proof head or plug
Accuracy	Class I, Class II

Product feature

Mineral insulation is made of highly compressed magnesium oxide powder (MgO). This mineral insulator is electrically insulating with excellent thermal qualities and can withstand extreme temperatures. It also has excellent high-temperature stability and mechanical strength. The thermocouple wire is embedded inside the mineral insulation, ensuring a gas-tight and durable seal that protects it from physical damage, corrosion, and exposure to chemicals.

Production advantages

Long and thin shape, quick response, vibration resistance, high-pressure resistance and long service life etc. Especially they are suitable for installing in where the pipelines are narrow and bent and meeting the special requirements for the quick response and miniaturization.

Quick response time, making them ideal for applications that need precise and fast response to temperature fluctuations in harsh environments. The thin insulation layer enables faster heat transfer by reducing the thermal time-constant delay associated with bulky insulation layers used in conventional thermocouples.

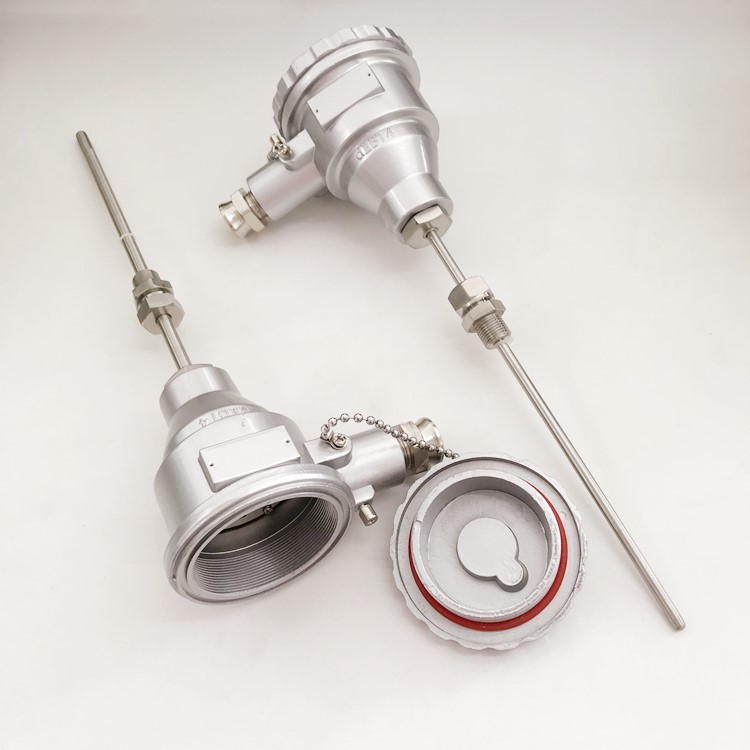

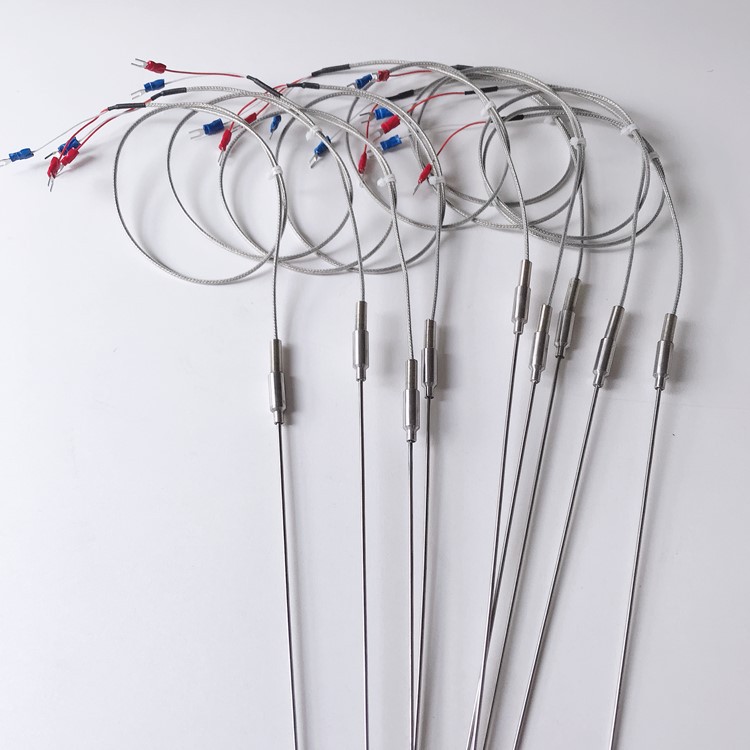

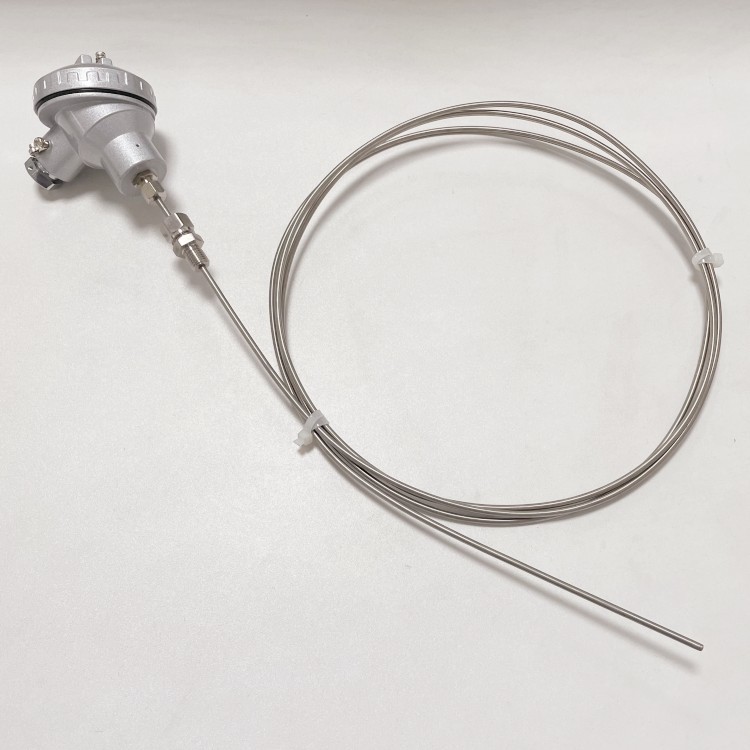

Products Pictures
