K J Type Thermocouple Sensor
K J Type Thermocouple is a common temperature sensor used in industrial temperature testing. It directly measures the temperature and converts the temperature signal into thermoelectric electromotive force signal, which is converted into the temperature of the measured medium by electrical instrument (secondary instrument).
Product Introduction
Thermocouple is composed of temperature sensor and signal converter, signal converter is installed in the junction box of temperature sensor, temperature sensor produce resistance or potential effects made by the temperature affect, via transformation to create a differential voltage signal. The signal via the amplifier amplification, then through voltage and current transformation, output 4-20 mA current signal corresponding to the range.
Features:
Easy assembly and convenient for replacement;
Spring thermal element with good shock-proof performance;
Wide measuring range (0~1600 degree Celsius);
High mechanical strength and good pressure-resistant performance
Product Parameter
Mark: K N E J T S R B
Type: simplex or duplex
Temperature range: 0 to 1300℃
Probe size: according to drawing, could be designed to be chips, blocks, shovel, screw, ring
Probe material: SS304/316
Process connection: fixed thread or movable thread (according to requirements)
Lead wire: customized length (PTFE/PVC/Fiberglass sheath)
Terminal: jacks or connectors
Conductor material | Mark | Accuracy | |||
Class I | Class II | ||||
Accuracy | Temperature range (°C) | Accuracy | Temperature range (°C) | ||
NiCr-NiSi | K | ±1.5°C or ±0.4%|t| | -40~1000 | ±2.5°C or ±0.75%|t| | -40~1000 |
NiCr Si-NiSi | N | -40~1100 | -40~1100 | ||
NiCr-Konstantan | E | -40~800 | -40~700 | ||
Fe-Konstantan | J | -40~750 | -40~500 | ||
Cu-Konstantan | T | ±0.5°C or ±0.4%|t| | -40~350 | ±1°C or ±0.75%|t| | -40~300 |
PtRh10-Pt | S | ±1°C or ±[1+ (t-1100) ×0.003] | 0~1600 | ±1.5°C or ±0.25%|t| | 0~1400 |
PtRh13-Pt | R | 0~1600 | |||
PtRh30-PtRh6 | B | —— | —— | 600~1700 | |
Product Pictures
Factory Introduction

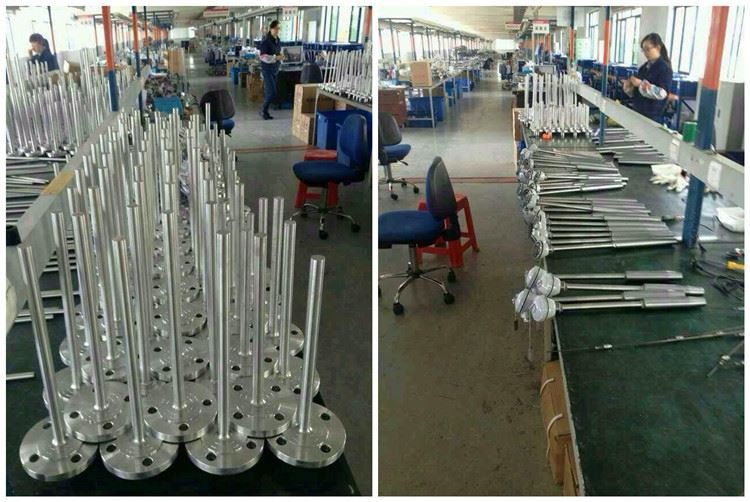

Workshop:
Warehouse:
Quality Certificates
Packing and Shipping
Delivery Details
FAQ
Q: Where are the main markets for sales?
A: Mainland China, Thailand, USA, Russia, Vietnam, Singapore, Malaysia, Australia, Myanmar, Pakistan, Bahrain etc.
Q: How can I get the price ?
A: You could Email/call/leave message to us with your details (name, telephone, address, etc), also with your products details, we will reply you ASAP.
Q: What is your minimum order quantity?
A: There's no minimum quantity, you can buy any quantity. However, few in number, the unit price will be a little higher.
Q: How to order?
A: Please send us your purchase order by email or fax, or you could ask us to send a proforma invoice for your order. And before this, please tell me your company name, address, phone number, or any other information need to show in the PI.
Q: Which ship way do you have?
A: We have a very low discount from FedEx, DHL, UPS and TNT. It will be helpful for your fast delivery and cheap shipping.
