Duplex Thermocouple Type K
Duplex Thermocouple Type K is used in industry for measuring the temperature of gases, liquids or solid surfaces etc., It's usually assembled with indicators, recorders or computers.
Product Introduction
Thermocouples are manufactured in many different configurations for multitude of applications. Diameters, lengths, sheath material, lead lengths and sensor material are just a few of the variables that go into determining the style of thermocouple when manufactured. The main determining factors of what type thermocouple needs to be used in an application is temperature, environment, response time and accuracy. The junction of the thermocouple can be grounded, ungrounded or exposed.
Product Parameter
Mark: K N E J T
Type: duplex
Temperature range: 0 to 1000℃
Probe diameter: 1mm~10mm (probe could be designed to be chips, blocks, shovel, screw, ring)
Probe length: customized
Probe material: stainless steel 321/310/304/316 or high temperature alloy Inconel600, GH3030
Process connection: none or fixed thread
Lead wire: customized length (PTFE/PVC/Fiberglass sheath)
Terminal: jacks or connectors
Conductor material | Mark | Accuracy | |||
Class I | Class II | ||||
Accuracy | Temperature range (°C) | Accuracy | Temperature range (°C) | ||
NiCr-NiSi | K | ±1.5°C or ±0.4%|t| | -40~1000 | ±2.5°C or ±0.75%|t| | -40~1000 |
NiCr Si-NiSi | N | -40~1100 | -40~1100 | ||
NiCr-Konstantan | E | -40~800 | -40~700 | ||
Fe-Konstantan | J | -40~750 | -40~500 | ||
Cu-Konstantan | T | ±0.5°C or ±0.4%|t| | -40~350 | ±1°C or ±0.75%|t| | -40~300 |
PtRh10-Pt | S | ±1°C or ±[1+ (t-1100) ×0.003] | 0~1600 | ±1.5°C or ±0.25%|t| | 0~1400 |
PtRh13-Pt | R | 0~1600 | |||
PtRh30-PtRh6 | B | —— | —— | 600~1700 | |
Product Pictures
Factory Introduction
Workshop:

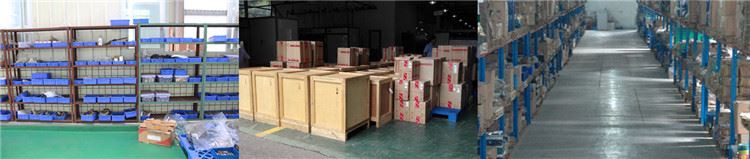

Warehouse:
Quality Certificates
Packing and Shipping
Delivery Details
FAQ
Q: What is the product range of your factory?
A: Temperature sensors including thermocouple, thermal resistance, bimetal thermometer, temperature transmitter.
Q: I have a small order, can't reach the MOQ, can you do that?
A: Of course ok, we can make it even 1 piece.
Q: Can I get a discount?
A: The price is negotiable, and we can provide you with a discount according to your order quantity. If you buy For bulk packaging, we provide you with wholesale prices.
Q: How do you ship the goods and how long does it take to arrive?
A: Airline and sea shipping are optional. Shipping time depends on distance and means of transport.
Q: Can you print my logo or company name on the product or packaging?
A: Yes. Your logo or company name can be printed on the product by stamping, printing, embossing, die-casting, coating or stickers.
