Stainless Steel Protection Tube
Protection tube is used for thermocouple or thermal resistance. It is designed to protect the temperature sensor from flow, high pressure and harsh environments.
It is matched with thermocouple(thermal resistance)and bimetallic thermometer to ensure their normal operation. It is also used for environment under high pressure or with high flow speed.
Nominal Pressure
It generally refers to sustainable static pressure from outside on protection tube without breakage. It concerns not only material, diameter, wall thickness of protection tube, but structure and mounting way of the tube, flow speed and category of tested media as well.
Water Pressure Test
It is conducted to checking pressure resistance and leakage of protection tube. Testing pressure shall be 1.5 times of pressure-proof class of protection tube.
Products Parameter

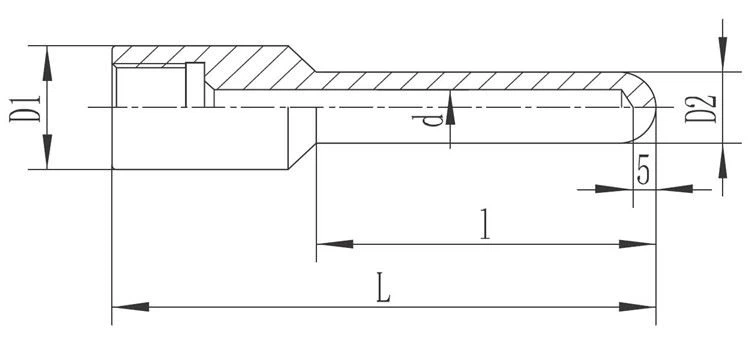

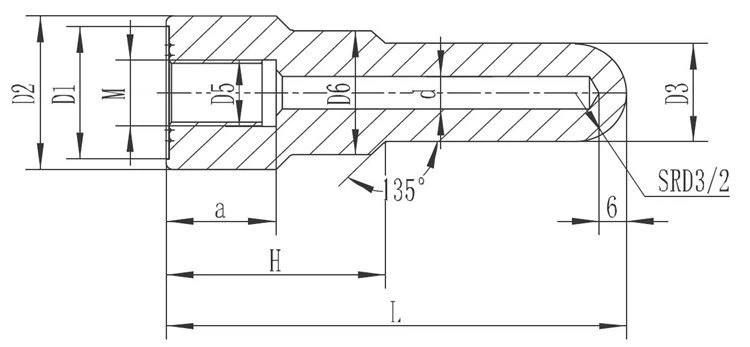

Size Drawing:
|
|
Ladder type |
|
|
Straight type |
|
|

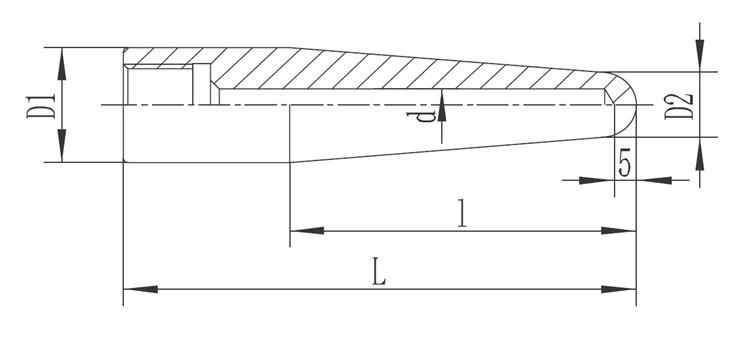

Tapered type |
Materials for Choose
|
Material |
Code |
Highest working temperature |
Feature |
Application |
|
0Cr18Ni9 |
304 |
800℃ |
Low carbon stainless steel, good resistance to intercrystalline corrosion and welding performance |
Chemical plant, Manufacturing industry, Nuclear power station |
|
00Cr19Ni10 |
304L |
800℃ |
Super low carbon stainless steel, good resistance to corrosion and welding performance |
Chemical plant, Manufacturing industry, Nuclear power station |
|
1Cr18Ni9Ti |
321 |
800℃ |
Low carbon stainless steel, good resistance to intercrystalline corrosion and welding performance |
Chemical plant, Manufacturing industry, Nuclear power station |
|
0Cr17Ni2Mo2 |
316 |
800℃ |
Anti- corrosion to tartaric acid, phosphoric acid, vitriol, good resistance to intercrystalline corrosion and welding performance |
Chemical plant, Manufacturing industry, Nuclear power station |
|
0Cr17Ni14Mo2 |
316L |
800℃ |
Super low carbon stainless steel, better resistance to corrosion thant 316 and welding performance |
Chemical plant, Manufacturing industry, Nuclear power station |
|
0Cr25Ni20 |
310S |
1100℃ |
Good anti-corrosion performance, especially for Chlorine, Isothermal oxidation resistance |
Bolier, Cement plant, Furnace, Oil industry, Power station |
|
GH3030 |
1100℃ |
Nickel-base superalloy, good resistance to oxidation and corrosion and welding performance |
Combustion furnace equipment, working under high temperature and low voltage |
|
|
GH3039 |
1150℃ |
Nickel-base superalloy, better resistance to oxidation than GH3030 and working temperature is higher |
Combustion furnace equipment, working under high temperature and low voltage |
|
|
1Cr15Ni75Fe |
Inconel 600 |
1100℃ |
Nickel-chromium-iron base superalloy, good resistance to corrosion and welding performance, high temperature resistance to oxidation |
Nuclear power station, Bolier, Furnace, Thermal treatment |
|
CYT101 |
1200℃ |
New type high temperature superalloy, good high temperature strength and wear resistance, and anti-sulfur, excellent in resistance to oxidation, suitable for using in high temperature corrosive atmosphere, good welding performance and processability |
Combustion furnace, Bolier, Kiln, Heat exchanger, Power station |
|
|
3YC52 |
1200℃ |
High temperature resistance, wear resistance, oxidation resistance, non-creep resistance, corrosion resistance |
Circulating fluidized bed boiler, garbage incinerator |

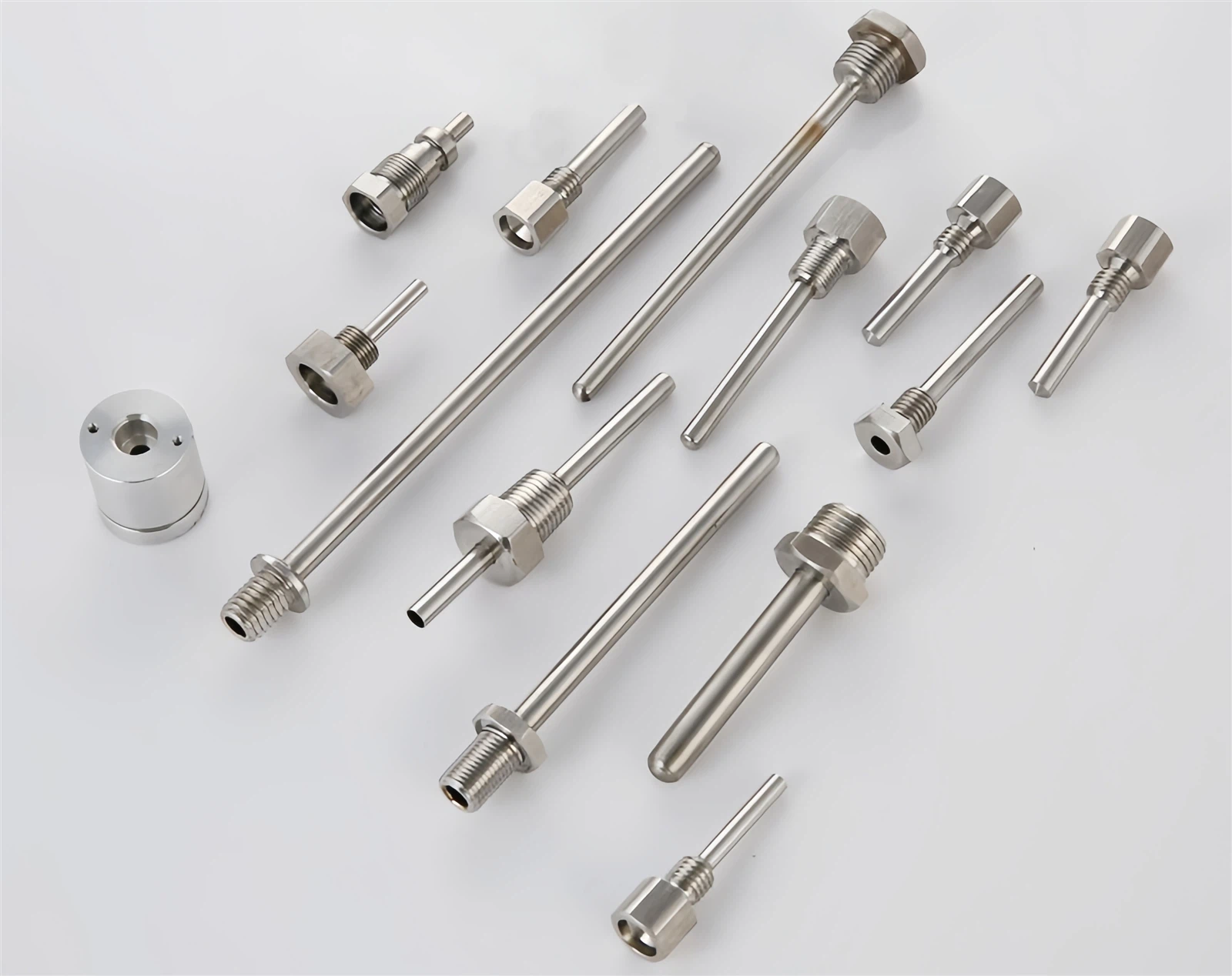

Products Pictures
Company Information
Chongqing Haichen Instrument Co., Ltd.
Choose the product that suits you best.
Strict Quality Control
For each order, the quality control department will conduct strict inspections before shipment to prevent quality degradation.
Design
We will recommend the most suitable products for customers according to drawings, temperature requirements and installation site.
25 Years of Deep Technology Accumulation
We have more than 20 years of experience in this field, that we can preview issues with orders and products. Therefore, it will ensure that the risk of bad situations is reduced.
Point-to-point service
From consultation to product delivery, there are sales staff to serve you. During this process, you only need to discuss all issues with her, which can save a lot of time.
Workshop and warehouse
Quality Certification
Honor and qualification
Official certification, professional after sales service.
Explosion-proof Certificate for Thermocouple sensor
Explosion-proof Certificate for RTD Sensor
Quality certificate ISO9001:2015
Explosion-proof Certificate for temperature transmitter
SIL functional safety certificate
Packing and shipping
We could choose delivery by Express (DHL/FedEx/TNT/ARAMEX), by Air, by Sea; or according to customer's requirement;
Products with storage, such as connector, common material for thermocouple, delivery in 1-2 workdays;
Products customized, according to material and quantity, delivery in 7~60 workdays.
FAQ
Q: What are your factory's advantages?
A: 1) Rich experience: We have more than 20 years of experience in this industry. This means that we can preview issues with orders and products. Therefore, it will ensure that the risk of bad situations is reduced.
2) Point-to-point service: From consultation to product delivery, there are sales staff to serve you. During this process, you only need to discuss all issues with her, which can save a lot of time.
3) Design: We will recommend the most suitable products for customers according to drawings, temperature requirements and installation site.
4) Strict quality control: For each order, the quality control department will conduct strict inspections before shipment to prevent quality degradation.
5) Transportation: We have freight forwarders, so we can guarantee faster delivery and ensure that the goods are well protected.
Q: What is the process of an order?
A: Send your detailed request → Feedback with quotation → Confirm price and some details → Provide PI → Make payment → Start production → Quality checking → Delivery → After service.
