Dual K Type Thermocouple
Assembly thermocouple test the temperature of gas, liquid media and fixed surface in range of 0~ 1600C. It is widely used in aviation, atomic energy, petroleum, chemical industry, metallurgy, machinery and other industrial sectors and field of science and technology.
Product Introduction
Assembly thermocouple test the temperature of gas, liquid media and fixed surface in range of 0~ 1600C and usually consists of temperature sensing elements (thermocouple wire),protection tube, terminal box and installation fixed device.
Main features include large measuring range, long service life, easy installation and use and cheap price. Disadvantages include poor vibration resistance, long-term use will effect mark characteristics.
Product Parameter
1. Wire element: over 800℃, it is suggested use diameter 2mm and 2.5mm, the thickest: 3.2mm
2. Protection tube:
If long time used over 800℃, it is suggested Inconel600, GH3030, GH3039 (high temperature alloy) or ceramic tube.
If used in corrosive environment, it is suggested SS316L.
If need wear-resisting, it is suggested CYT101
Conductor material | Mark | Accuracy | |||
Class I | Class II | ||||
Accuracy | Temperature range (°C) | Accuracy | Temperature range (°C) | ||
NiCr-NiSi | K | ±1.5°C or ±0.4%|t| | -40~1000 | ±2.5°C or ±0.75%|t| | -40~1000 |
NiCr Si-NiSi | N | -40~1100 | -40~1100 | ||
NiCr-Konstantan | E | -40~800 | -40~700 | ||
Fe-Konstantan | J | -40~750 | -40~500 | ||
Cu-Konstantan | T | ±0.5°C or ±0.4%|t| | -40~350 | ±1°C or ±0.75%|t| | -40~300 |
PtRh10-Pt | S | ±1°C or ±[1+ ( t-1100 ) ×0.003] | 0~1600 | ±1.5°C or ±0.25%|t| | 0~1400 |
PtRh13-Pt | R | 0~1600 | |||
PtRh30-PtRh6 | B | —— | —— | 600~1700 | |
Product Pictures
Factory Introduction
Workshop:

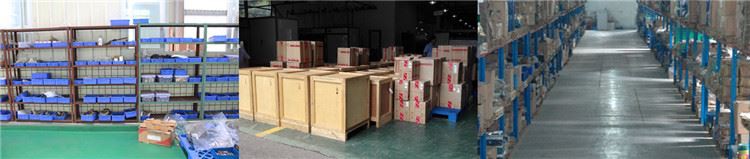

Warehouse:
Quality Certificates
Packing and Shipping
Delivery Details
FAQ
Q: Is Haichen trading company or manufacturer?
A: Haichen is a factory which was found in 2000.
Q: What is the product range of your factory?
A: Temperature sensors including thermocouple, thermal resistance, bimetal thermometer, temperature transmitter.
Q: Is sample order available?
A: Yes, sample order is acceptable. But it’s not free and customer need to pay the freight cost.
Q: Can I get a discount?
A: The price is negotiable, and we can provide you with a discount according to your order quantity. If you buy For bulk packaging, we provide you with wholesale prices.
Q: How long could I received the package?
A: After receiving the payment, we will delivery in 7~60 workdays, production time according to the quantity.
Q: Will my drawings be safe after sending to you?
A: Yes, we will keep them well and not release to third party without your permission.
