L Shape Thermocouple
L shape thermocouple is mainly for the situation where is high temperature and harmful gas have influence on the thermocouple junction box, or it is not suitable for horizontal and vertical installation.
Product Introduction
L shape thermocouple is mainly for the situation where is high temperature and harmful gas have influence on the thermocouple junction box, or it is not suitable for horizontal and vertical installation. Common used mark is K or E type, it is also could choose other mark (N/J/T/S/R/B) according to temperature requirements. Mainly used in metallurgy, chemical industry, non-ferrous metal smelting, especially suitable for liquid aluminum, liquid copper temperature testing, because of its high density, temperature measurement process is not eroded by liquid aluminum; Good thermal shock resistance, insulation resistance to oxidation, wear resistance to high temperature, long service life.
Product Parameter

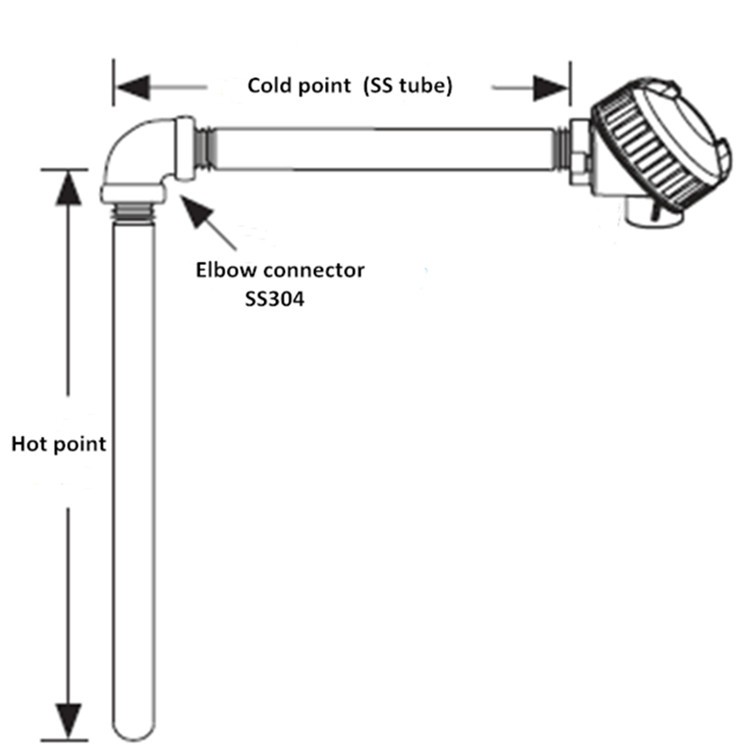

1. Wire element: over 800℃, it is suggested use diameter 2mm and 2.5mm, the thickest: 3.2mm
2. Cold point (not insert to test temperature): SS304/SS316/310S
3. Hot point (insert part):
If long time used over 800℃, it is suggested 310S, Inconel600, GH3030, GH3039 (high temperature alloy) or ceramic tube.
If used in corrosive environment, it is suggested SS316L.
4. Silicon nitride protection tube mainly for aluminum solution; silicon carbide protection tube mainly for acid solution.
Model | Graduation | Measuring range °C | Thermal response time (s) | Protection tube material | L× l (mm) |
WRN-530 | K | 0-800 | ≤90S | High temperature alloy Ceramic tube Silicon nitride Silicon carbide | 300x150 |
WRN2-530 | 350x200 | ||||
WRE-530 | E | 0-600 | 400x250 | ||
WRE2-530 | 450x300 | ||||
WRN-530 | K | 0-800 | 500x350 | ||
WRN2-530 | 550x500 | ||||
WRE-530 | E | 0-600 | 600x450 | ||
WRE2-530 | 650x500 |
Product Pictures
Factory Introduction
Workshop:
Warehouse:
Quality Certificates
Packing and Shipping
For L shape thermocouple, if the hot point tube is silicon nitride, silicon carbide or ceramic, usually we will pack with plywood case with hanging bracket:
If packed with no assembly, the fragile tube (silicon nitride, silicon carbide, ceramic) will be packed with plywood case with hanging bracket separately, other parts (core, terminal head, cold point SS tube, elbow connector) packed with common case:
Delivery Details
FAQ
Q: Are you trading company or manufacturer?
A: We are factory, has been working on thermocouple and thermal resistance for 20 years.
Q: To get an accurate price, what information should be provided?
A: Mark, temperature range, size information, material requirement, or detailed drawing.
Q: Will my drawings be safe after sending to you?
A: Yes, we will keep them well and not release to third party without your permission.
Q: Can I get a discount?
A: The price is negotiable, and we can provide you with a discount according to your order quantity. If you buy For bulk packaging, we provide you with wholesale prices.
Q: What is term of payment?
A: Payment less than or equal to 10000USD, 100% T/T in advance.
Payment more than 10000USD, 50% T/T in advance, balance before delivery.
Q: What is the process of an order?
A: Send your detailed request → Feedback with quotation → Confirm price and some details → Provide PI → Make payment → Start production → Quality checking → Delivery → After service.
