Right Angle Thermocouple
Right angle thermocouple is used to monitor temperatures for heat treating and glass manufacture. It keeps the thermocouple head away from radiated heat from the process and also avoids contact with process covers.
Products Introduction
Right Angle Thermocouple
It is mainly uitable for the production site where high temperature and harmful gas will affect the terminal head of thermocouple, or it is not suitable for direct horizontal and vertical installation. The right-angle thermocouple adopts a 90-degree angle to avoid exposing the terminal head above the furnace directly, which could avoid the temperature error of thermocouple.
WR series industrial thermocouple as temperature measurement sensor, usually is used with temperature transmitter, regulator and display instrument and other supporting use and consist process control system, which directly measure or control the temperature of fluid, steam, gas medium and solid surface in the range of 0-1800℃ during a variety of production processes.
Product Parameter
Mark
K or E (common used)
Type
Simplex or duplex
Temperature range
0~1000℃
Cold point
Stainless steel tube (SS304/SS316/SS310)
Hot point
SS tube, silicon carbide tube, silicon nitride tube, ceramic tube
Process connection
movable thread or flange
Terminal head
waterproof or explosion-proof
Accuracy
class II or class I
Product Selection
|
Model |
Mark |
Measuring range °C |
Thermal response time(s) |
Protection tube material |
L× l (mm) |
|
WRN-530 |
K |
0-1000 |
≤90S |
High temperature alloy Ceramic tube Silicon nitride Silicon carbide |
300x150 |
|
WRN2-530 |
350x200 |
||||
|
WRE-530 |
E |
0-600 |
400x250 |
||
|
WRE2-530 |
450x300 |
||||
|
WRN-530 |
K |
0-1000 |
500x350 |
||
|
WRN2-530 |
550x500 |
||||
|
WRE-530 |
E |
0-600 |
600x450 |
||
|
WRE2-530 |
650x500 |
1. Wire element: over 800℃, it is suggested use diameter 2mm and 2.5mm, the thickest: 3.2mm
2. Cold point (not insert to test temperature): SS304/SS316/310S
3. Hot point (insert part):
If long time used temperature is over 800℃, it is suggested 310S, Inconel600, GH3030, GH3039 (high temperature alloy).
If used in corrosive environment, it is suggested SS316L.
4. Silicon nitride protection tube mainly for aluminum solution; silicon carbide protection tube mainly for acid solution.

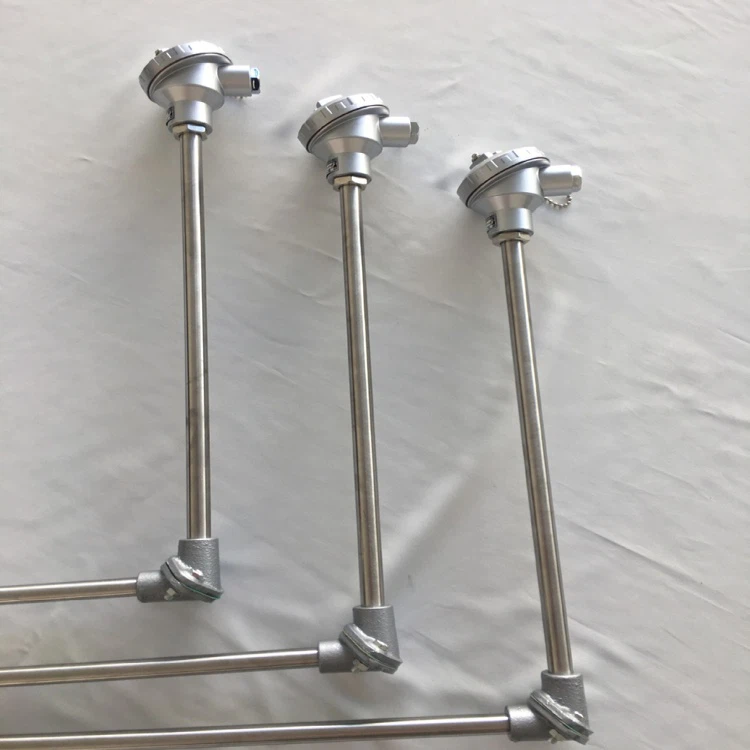

Product pictures
Company Information
chongqing Haichen instrument Co., ltd.
Our factory located in Chongqing City, we were in the field of temperature sensor since 2000. And we have more than 14 years experience of exporting. Our customers are throughout the world in different field, we have exported to Europe (Denmark, Italy), the Middle East (Pakistan, Bahrain), Southeast Asia (Vietnam, Thailand, Myanmar) and the Oceania (Australia, New Zealand).
Our main products include: Thermocouple Sensor, RTD Sensor, Bimetal Thermometer, Temperature Transmitter, Control Valve, Heaters And So On. Our company has always been adhering to the business policy of "quality is the life of the enterprise, the user is our God", strict to product quality, and provide users with high-quality design, manufacturing, installation, debugging and top-ranking service for temperature sensors.

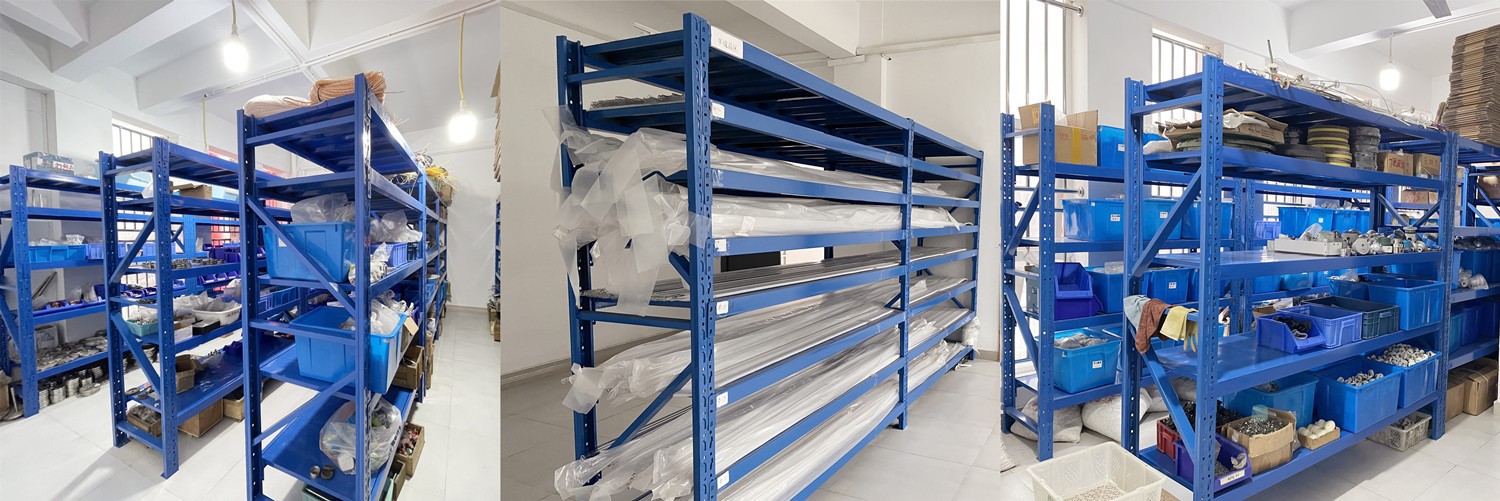

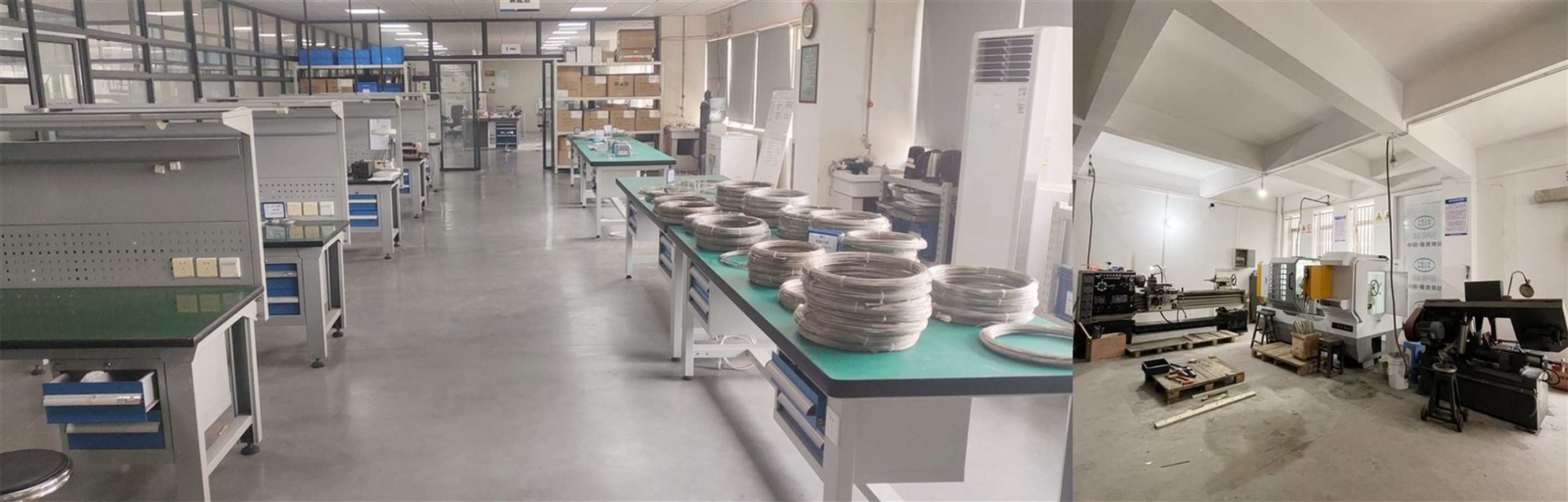

Workshop & Warehouse
