Pt100 Thermosensor
Pt100 Thermosensor is one of the most commonly used temperature detectors in low and medium temperature zones. The temperature measurement of RTD is based on the property that the resistance of a metal conductor increases with the increase of temperature. Its main characteristics are high measurement accuracy and stable performance.
Pt100 Thermosensor
Mark
Pt100/Pt1000
Type
simplex or duplex (2 wires/3 wires/4 wires/6 wires/8 wires)
Measuring temperature range
-200~600℃
Tube diameter
φ10mm~φ28mm
Tube material
SS304/316, 310S
Process connection
none/fixed or movable thread or flange
Terminal box
water-proof/explosion-proof
Product Profile
Pt100 Thermosensor is one type of widely used industry thermometer, can be treated as standard thermometer. WZP series of assembling type industrial RTD sensor is designed and produced according to IEC standard. They normally work as a temperature sensor. They are used together with temperature displays and controls to detect and control the temperature of gas, liquid or solid surface. The working range is from -200ºC to 800ºC. A WZ thermal resistance contains temperature sensor, fixing parts and junction box.
|
Mark |
Nominal resistance (0°C) Ω |
Temperature measuring range °C |
Tolerance |
R100/Row |
|
Pt10 |
10 |
Ceramic elements: -200 ~ 600 Mica elements: -200 ~ 420 |
ClassA: ± (0.15+0.2%|t|) ClassB: ± (0.3+0.2%|t|) |
1.3851 |
|
Pt100 |
100 |
|||
|
Cu50 |
50 |
-50 ~ 100 |
± (0.3+0.6%|t|) |
1.428 |
|
Cu100 |
100 |
Product application
1. HVAC systems - RTD sensors are widely used in HVAC systems to monitor temperatures and ensure optimal performance.
2. Medical equipment - RTD sensors are used in medical equipment, such as incubators, to regulate temperature and protect patients' health.
3. Food processing - RTD sensors are used in the food processing industry to monitor temperature during cooking, storage, and transport to ensure food safety.
4. Automotive applications - RTD sensors are used in vehicle engines to monitor temperature levels and prevent overheating.
5. Chemical manufacturing - RTD sensors are used in chemical manufacturing, where accurate temperature measurements are critical to maintaining quality and safety standards.

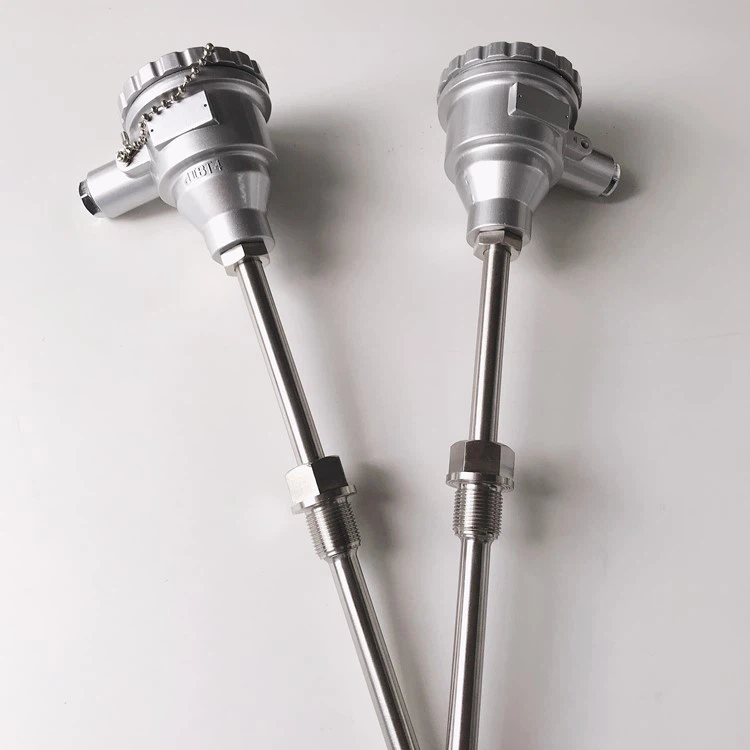

Products Pictures
Company Information
Chongqing Haichen Instrument Co., Ltd.
Haichen Was Established In June 2000.We Are A Factory Specialized In Research, Develop, Production, Sales And Service For Temperature Sensors, Including Thermocouple Sensor, RTD Sensor, Bimetal Thermometer, Temperature Transmitter, Control Valve, Heaters And So On.
large enterprise scale
Efficient and precise processing and testing equipment.
Standardized Production
Passed ISO9001 certification and obtained relevant patent certificates.
High-Quality Customized Services
Providing one-stop service from design, processing, sample trial to mass production.
Honor and qualification
Official certification, professional after sales service.
Package and delivery
24 hours on-line service
We could choose delivery by Express (DHL/FedEx/TNT/ARAMEX), by Air, by Sea; or according to customer's requirement;
Products with storage, such as connector, common material for thermocouple, delivery in 1-2 workdays;
Products customized, according to material and quantity, delivery in 7~60 workdays
