Pt1000 Resistance Temperature Detector
RTD usually use a platinum thin film resistance element to test temperature from -200°C to 600°C. It is more accurate and more linear than thermocouples and generally slower responding.
Chongqing Haichen Instrument Co., Ltd. is one of the leading manufacturers and suppliers of pt1000 resistance temperature detector in China, also supports customized service. Please feel free to buy advanced pt1000 resistance temperature detector for sale here from our factory. Quality products and reasonable price are available.
Pt1000 Resistance Temperature Detector
Graduation
Pt100/Pt1000
Type
simplex or duplex
Testing temperature range
-200~600℃
Tube diameter
φ10mm~φ28mm
Tube material
SS304/316, 310S
Process connection
none/fixed or movable thread or flange
Terminal box
weather-proof or anti-explosion
Product Profile
Resistance Temperature Detector is one type of widely used industry thermometer, can be treated as standard thermometer. It mainly includes types of pt100, pt1000, Cu50, Cu100, with structures of assembly or sheath. For platinum RTD, the highest accuracy is ±0.1℃ (A class), the highest using temperature is 600℃. For Copper resistance, the highest accuracy is ±0.3℃, the highest using temperature is 150℃. RTD with high accuracy and low price, is widely applied for kinds of industries production process that temperature requirement is below 600℃.
|
Tube external diameter |
Length |
|
φ12mm |
225, 250, 350, 400, 450, 550, 650, 900, 1150 |
|
φ16mm |
300, 350, 450, 500, 650, 900, 1150, 1650, 2150 |
|
Tapered shape |
225, 250, 300, 400 |
Product features
It can accurately measure temperature to within a tenth of a degree Celsius, making it highly precise and reliable.
It can exhibit a high level of stability and repeatability, even in harsh environments, making them ideal for use in industrial settings.
It can measure temperature in a wide range of temperatures, from very low (-200°C) to very high (up to 850°C), depending on the metal used in their construction.
It can widely be used HVAC systems, medical equipment, food processing industry, vehicle engines and chemical manufacturing.

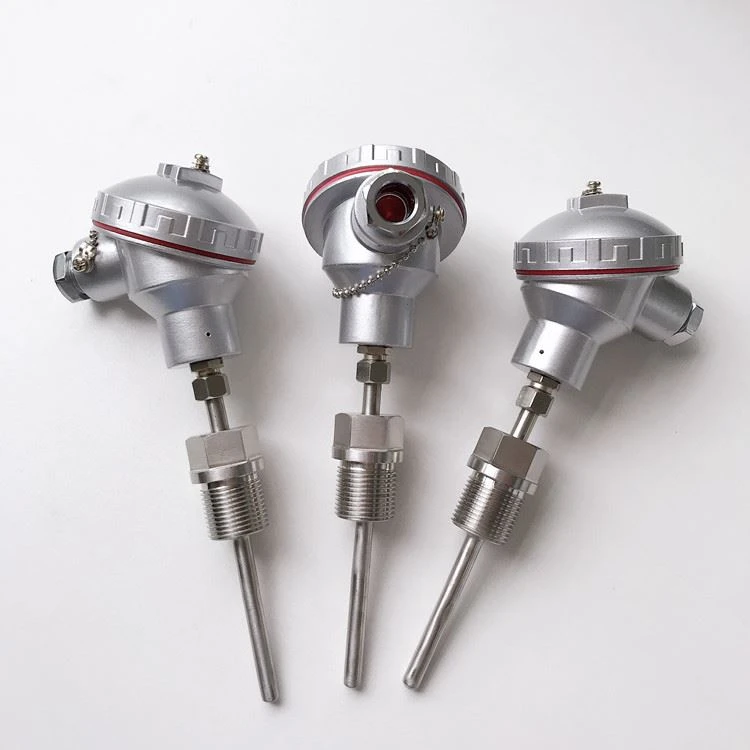

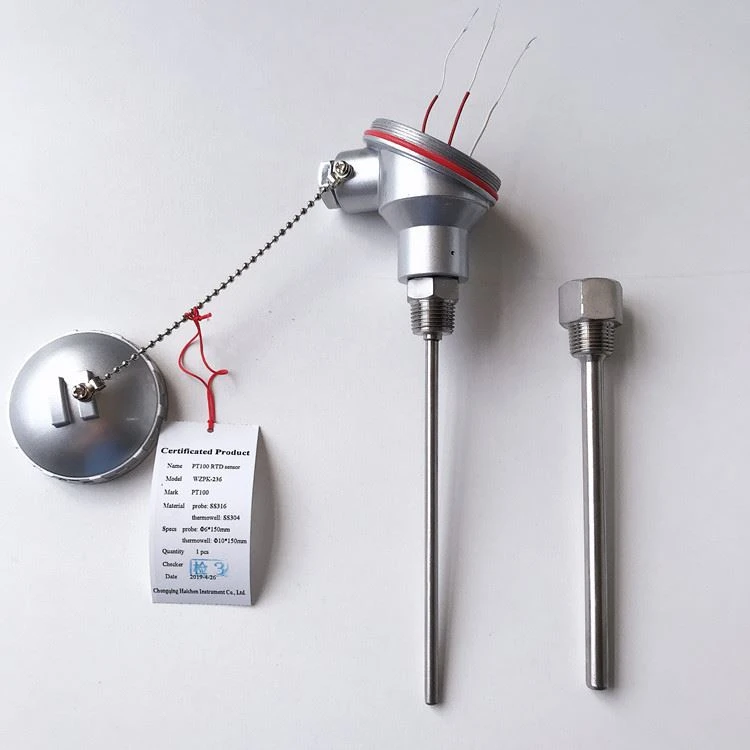

Products Pictures
Company Information
Chongqing Haichen Instrument Co., Ltd.
Our factory located in Chongqing City, we were in the field of temperature sensor since 2000. And we have more than 14 years experience of exporting. Our customers are throughout the world in different field, we have exported to Europe (Denmark, Italy), the Middle East (Pakistan, Bahrain), Southeast Asia (Vietnam, Thailand, Myanmar) and the Oceania (Australia, New Zealand).
large enterprise scale
Efficient and precise processing and testing equipment.
Standardized Production
Passed ISO9001 certification and obtained relevant patent certificates.
High-Quality Customized Services
Providing one-stop service from design, processing, mold trial to mass production.
Honor and qualification
Official certification, professional after sales service.
Thermocouple Sensor Explosion-proof
RTD Sensor Explosion-proof
iSO9001:2015 quality Management System
Temperature Transmitter explosion-proof
Functional Safety Certificate
Package and delivery
24 hours on-line service
We could choose delivery by Express (DHL/FedEx/TNT/ARAMEX), by Air, by Sea; or according to customer's requirement;
Products with storage, such as connector, common material for thermocouple, delivery in 1-2 workdays;
Products customized, according to material and quantity, delivery in 7~60 workdays
Do you have any questions?
Q: How long has HAICHEN been in business?
A: HAICHEN was founded in 2000, has been working on manufacturing and exporting of temperature sensor.
Q: Where are the main markets for sales?
A: Mainland China, Thailand, USA, Russia, Vietnam, Singapore, Malaysia, Australia, Myanmar, Pakistan, Bahrain etc.
Q: Which payment do you have?
A: We have Trade Assurance (paid by Alibaba), Payoneer, TT, West Union and so on.
Q: Is there cheap shipping cost to export to our country?
A: For small order, express will be best, for bulk order, sea ship way is best but take much time. For urgent orders, we suggest by express, big quantity by air.
Q: What is the process of an order?
A: Send your detailed request → Feedback with quotation → Confirm price and some details → Provide PI → Make payment → Start production → Quality checking → Delivery → After service.
