Sanitary RTD Probe
Sanitary RTD Probes are one type of widely used in food industry. Its common mark is PT100, with probe material SS304.
Products Introduction
Sanitary RTD Probes usually use a platinum thin film resistance element to sense the temperature. It is more accurate and more linear than thermocouples and generally slower responding. It is usually measure the temperature range of -200~600°C, connected with display instrument, recording meter and computer, etc. to directly measure temperature of liquid, gas, solid surface. Its element is mainly made of Pt or Cu. Filaments are evenly double-wrapped in insulating ceramic skeleton. It is called ceramic element. It has the advantage of fine high-temperature stability.
Products Parameter
|
Mark |
Pt100, Pt200, Pt500, Pt1000 |
|
Measuring temperature range |
-200 to 600 ℃ |
|
Probe type |
Mgo insulated |
|
Probe sheath material |
SS304, SS316, SS310 |
|
Probe diameter |
3~8mm, other size customized |
|
Probe length |
Customized (cold point and hot point) |
|
Process connection |
Tri-clamp, 1'', 1.5'', 2'' |
|
Lead wire material |
Length customized, sheath material optional: PTFE/PVC/Fiberglass |
|
Terminal |
Mini or standard connector, jacks, ferrule connector |
|
Junction |
Exposed tip or ungrounded |
|
Application |
for sanitary usage, such as brewery |
Product feature
1. RTD sensor can accurately measure temperature to within a tenth of a degree Celsius, making it highly precise and reliable.
2. RTD sensor exhibits a high level of stability and repeatability, even in harsh environments, making them ideal for use in industrial settings.
3. RTD sensors can measure temperature in a wide range of temperatures, from very low (-200°C) to very high (up to 850°C), depending on the metal used in their construction.
4. RTD sensor is compatible with various types of control systems, and its output signal can be easily converted into a digital or analog signal for compatibility with modern systems.
Production applications
1. Widely used in HVAC systems to monitor temperatures and ensure optimal performance.
2. Used in medical equipment, such as incubators, to regulate temperature and protect patients' health.
3. Used in the food processing industry to monitor temperature during cooking, storage, and transport to ensure food safety.
4. Used in vehicle engines to monitor temperature levels and prevent overheating.
5. Used in chemical manufacturing, where accurate temperature measurements are critical to maintaining quality and safety standards.

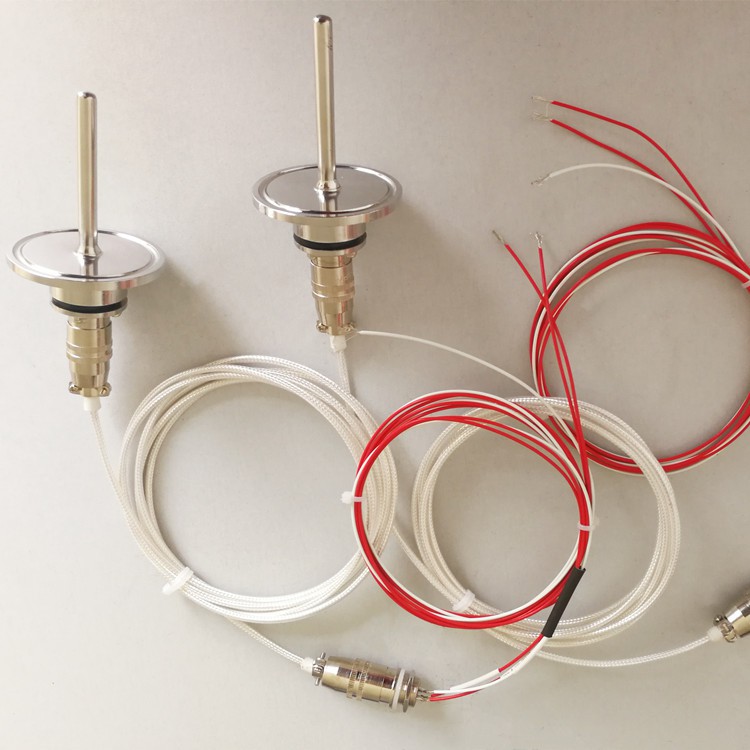

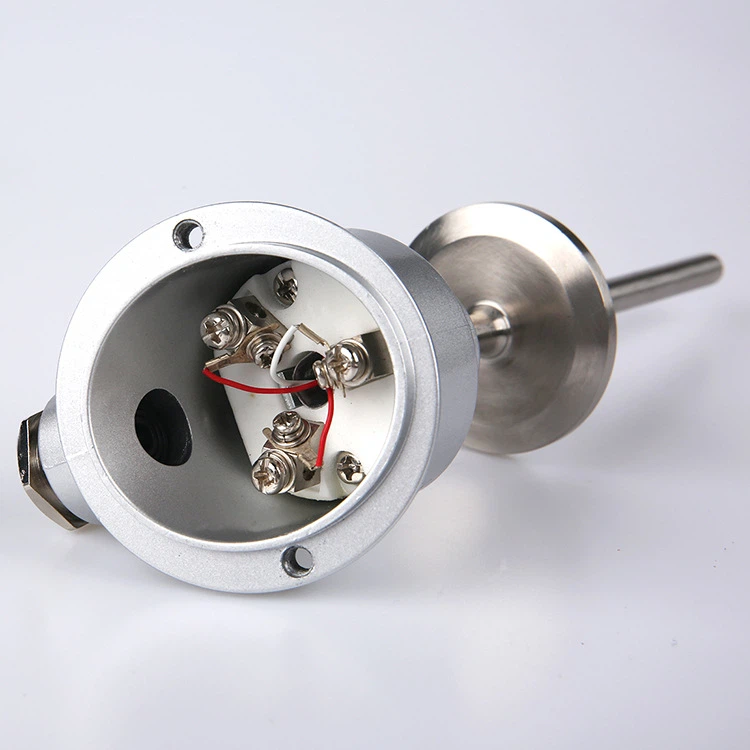

Products View
Company Profile
Chongqing Haichen Instrument Co., Ltd.
Haichen Was Established In June 2000.We Are A Factory Specialized In Research, Develop, Production, Sales And Service For Temperature Sensors, Including Thermocouple Sensor, RTD Sensor, Bimetal Thermometer, Temperature Transmitter, Control Valve, Heaters And So On.
large factory scale
Efficient and precise processing and testing equipment.
Standardized Production
Passed ISO9001 certification and obtained relevant patent certificates.
High-Quality Customized Services
No intermediate links, providing one-stop service from design, processing, mold trial to mass production.
Certificates
Package and delivery
Single packing for each product (with head)
Single pack for small product (without head)
Export standard carton
We could choose delivery by Express (DHL/FedEx/TNT/ARAMEX), by Air, by Sea; or according to customer's requirement;
Products with storage, such as connector, common material for thermocouple, delivery in 1-2 workdays;
Products customized, according to material and quantity, delivery in 7~60 workdays.
F&q
Q: What is your minimum order quantity?
A: There's no minimum quantity ,you can buy any quantity. However, few in number, the unit price will be a little higher.
Q: I have no drawing, how should I start the new project?
A: You could tell us the mark, temperature range, diameter and length of the probe, using environment or send us reference pictures.
Q: How can I get the price ?
A: You could Email/call/leave message to us with your details (name, telephone, address, etc), also with your products details, we will reply you ASAP.
Q: How about the package design?
A: Based on factory original box, original design on product with neutral laser and label, original package for export carton. Custom-made is also available.
Q: Can you print my logo or company name on the product or packaging?
A: Yes. Your logo or company name can be printed on the product by stamping, printing, embossing, die-casting, coating or stickers.
