GH3039 Sheathed Mgo Insulated Thermocouple
MI thermocouple has the advantages of slimness, easy bending, short thermal response time, anti-vibration, temperature resistance, compression resistance. Especially they are suitable for installing in where the pipelines are narrow and bent and meeting the special requirements for the quick response and miniaturization.
Products Introduction
Graduation
K/N/E/J/T/S/R/B
Testing temperature range
0~1300℃
Type
Simplex or duplex
Probe diameter
Common: φ1mm~8mm
Sheath material
Common material: SS304/316/310/321; High temperature alloy: Inconel600 GH3030/3039
Process connection
Thread or flange, movable or fixed
Terminal
Head or plug
Accuracy
Class I/II
Product Description
Mineral insulated thermocouples have the outstanding features as the following: long and thin shape, quick response, vibration resistance, high-pressure resistance and long service life etc. They are matched with the display instrument, which can automatically detect or adjust the temperature of gas, liquid medium and solid surface and widely used in the field of petroleum, chemical industry, metallurgy machinery, power stations, textile industry, food industry, atomic, aviation and scientific research etc. Especially they are suitable for installing in where the pipelines are narrow and bent and meeting the special requirements for the quick response and miniaturization.
|
Conductor material |
Calibration |
Accuracy |
|||
|
Class I |
Temperature range (°C ) |
Class II |
Temperature range ( °C ) |
||
|
NiCr-NiSi |
K |
±1.5°C or ±0.4%|t| |
-40~1000 |
±2.5°C or ±0.75%|t| |
-40~1000 |
|
NiCr Si-NiSi |
N |
-40~1100 |
-40~1100 |
||
|
NiCr-Konstantan |
E |
-40~800 |
-40~800 |
||
|
Fe-Konstantan |
J |
-40~750 |
-40~750 |
||
|
Cu-Konstantan |
T |
±0.5°C or ±0.4%|t| |
-40~350 |
±1°C or ±0.75%|t| |
-40~350 |
|
PtRh10-Pt |
S |
±1°C or ±[1+ ( t-1100 ) × 0.003] |
0~1600 |
±1.5°C or ±0.25%|t| |
0~1400 |
|
PtRh13-Pt |
R |
0~1600 |
|||
|
PtRh30-PtRh6 |
B |
-- |
-- |
600~1700 |
|
Product Features
|
Grounded |
|
Fast response time in relation to ungrounded and isolated junctions. Protect the wires from environmental chemicals and corrosives. Prolongs the operational life of the thermocouple. Longer lifespan than the exposed junction thermocouple. It is recommended for high pressure applications. It is the least expensive construction. |
|
Ungrounded |
|
The thermocouple junction is isolated from the ground. Defects in the MgO insulation can be detected by measuring resistance from loop to sheath. Long term drift under cycling conditions is minimized. |
|
Exposed |
|
Recommended for measurement of noncorrosive static gas, or air. Very fast response time, faster than grounded junction. |
|

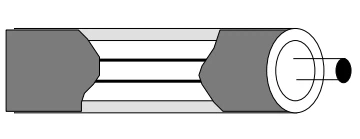

Isolated |
|
The elements are insulated from ground. Performs better than ungrounded or grounded junctions in a thermal cycling environment. |

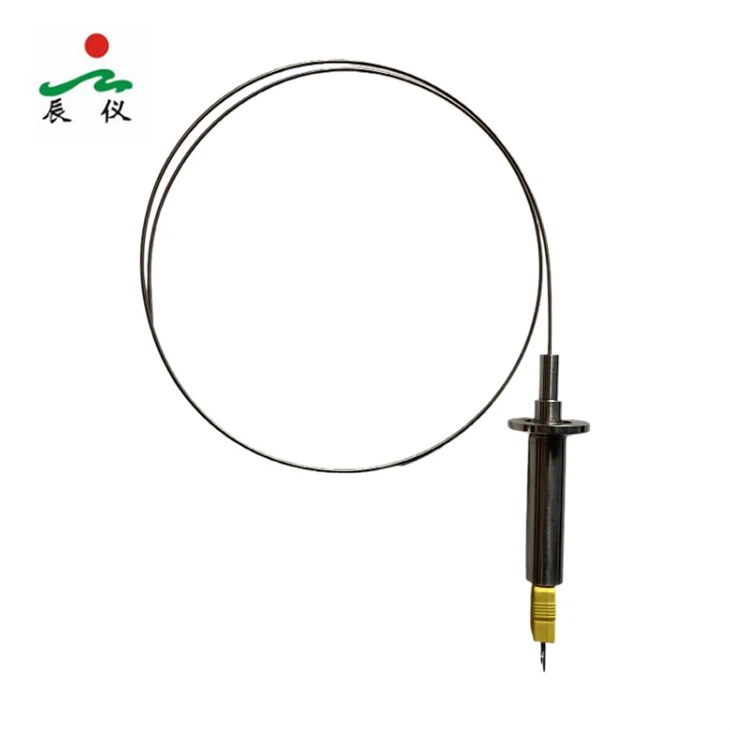

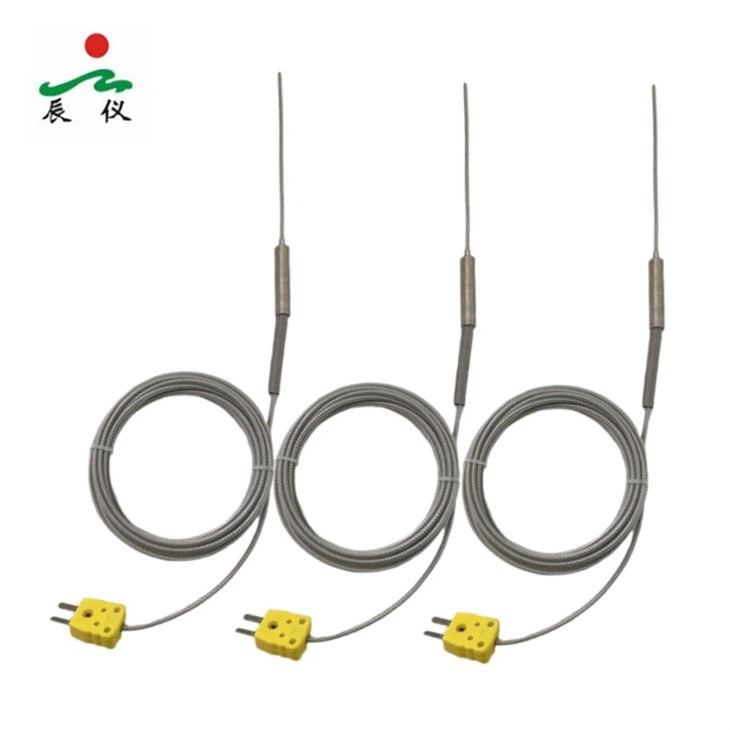

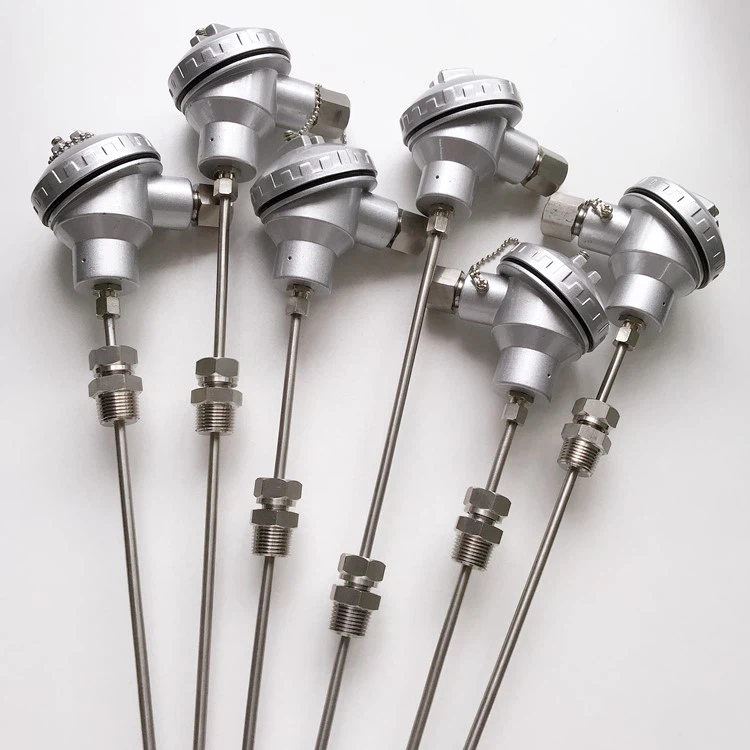

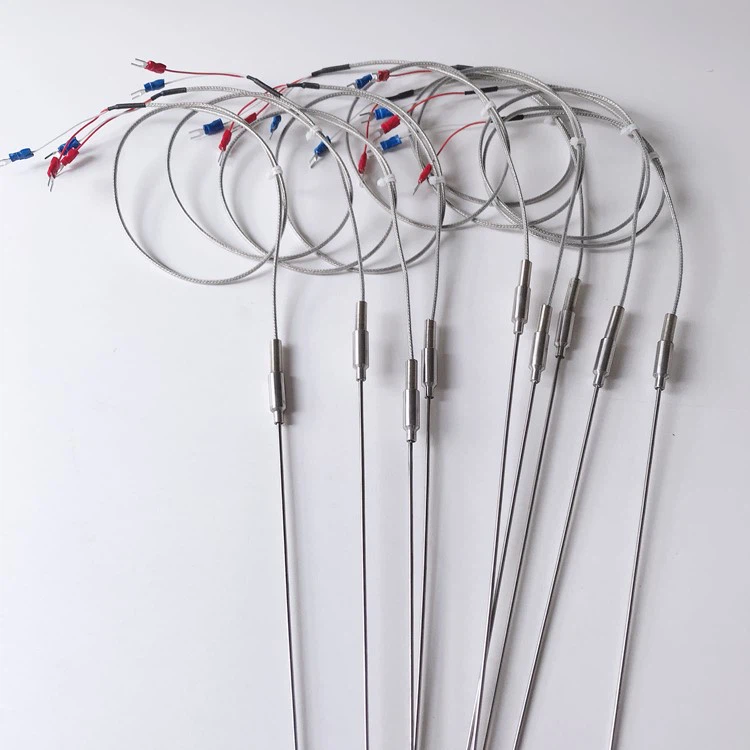

Products Pictures
Company Profile
Chongqing Haichen Instrument Co., Ltd,
Our factory located in Chongqing City, we specialized in the field of temperature sensor since 2000. And we have more than 14 years experience of exporting. Our customers are throughout the world in different field, we have exported to Europe (Denmark, Italy), the Middle East (Pakistan, Bahrain), Southeast Asia (Vietnam, Thailand, Myanmar) and the Oceania (Australia, New Zealand).
With the goal of "quality is the life of the enterprise, users are our God", we strictly check the quality of products, to provide customers with high quality products and first-rate services.

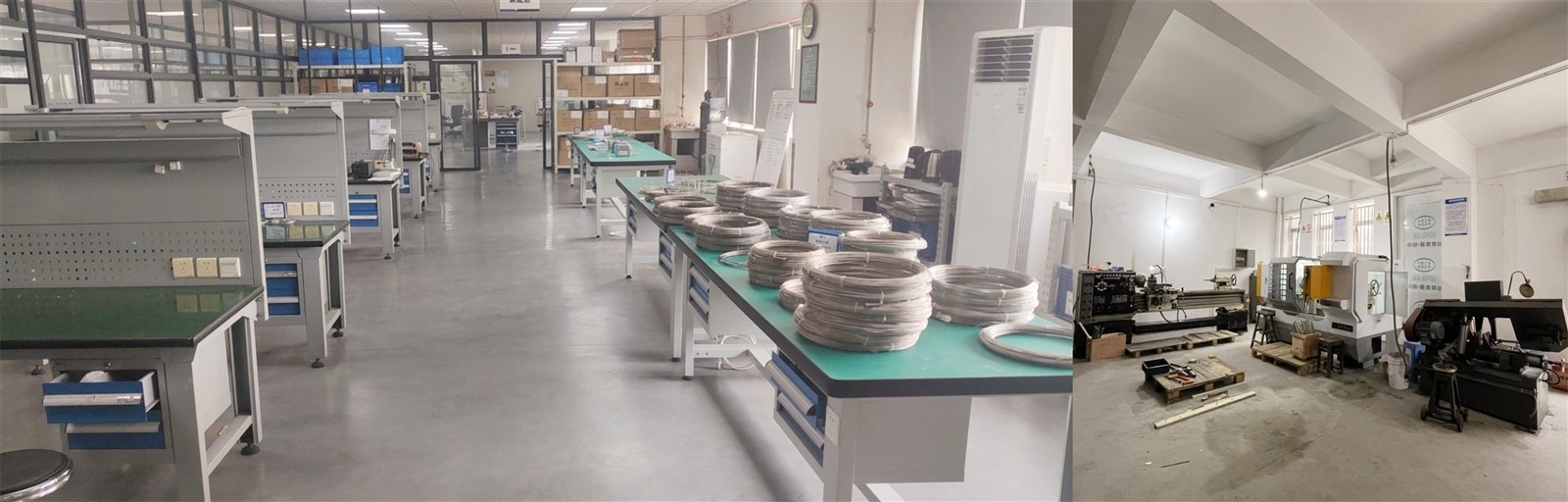

Workshop and warehouse
Certification

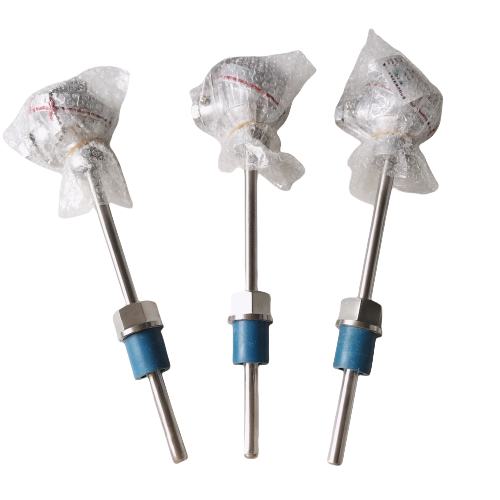

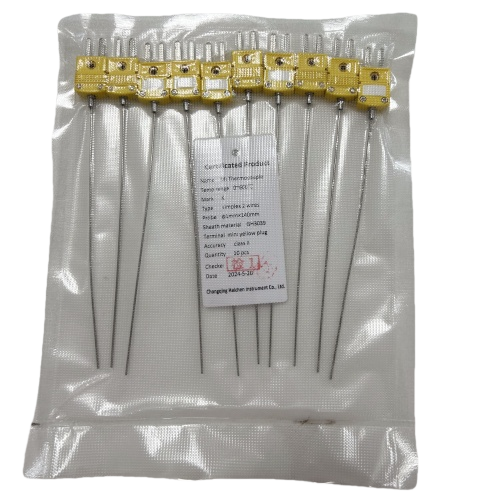

Packages
Our service
01
Pre-sale service
Conduct product consultation,product promotion and marketing activities,and technical support for customer needs.
02
Delivery service
Arrange fast delivery according to customer's requirements (Express (DHL/FedEx/TNT/ARAMEX), by Air, by Sea)
03
After-sales service
Installation and commissioning of specific products;Respond to consumer questions,answer consumer inquiries,and deal with consumer comments.
FAQ
01.How is your service before sale?
02.What is the product range of your factory?
03.Is small quantity available?
04.Does Haichen provide samples? Is it free or charge?
05.What is Haichen's warranty?
Replace new products for any wrong, damaged or low-quality products. Generally, the warranty will be 12 months.
06.How about Haichen's delivery time?
Depend on the quantity.
Generally, it will take 7 to 15 working days after receiving your advance payment.
Type of shipping: DHL, UPS, TNT, EMS, by Air, by Sea
