K Type Mineral Insulated Cable
Mineral insulated cable is mainly for MI thermocouple, it is bendable, very suitable for some site that not easy to test temperature.
Chongqing Haichen Instrument Co., Ltd. is one of the leading manufacturers and suppliers of k type mineral insulated cable in China, also supports customized service. Please feel free to buy advanced k type mineral insulated cable for sale here from our factory. Quality products and reasonable price are available.
Products Introduction
Mark
K/N/E/J/T is common, S/R/B/Pt100/Pt1000 customized
Testing temperature
-200~1300℃
Core
Simplex or duplex
Outer diameter
φ1mm~8mm for thermocouple, φ3mm~8mm for rtd
Sheath material
SS304/316/310/321 Inconel600 GH3030/3039
Accuracy
Class I/II
Product Description
Mineral insulated thermocouple wire is composed of thermo wires loaded in metal tube with insulated material; Mineral insulated thermal resistance cable is composed of nickel wires loaded in metal tube with insulating material, and welding thin (thick) film or ceramic elements in the end. They are processed into a bendable and solid parts. It is a key material for manufacturing mineral insulated thermocouples and RTDs which is widely used in industrial and technical field of various industries..

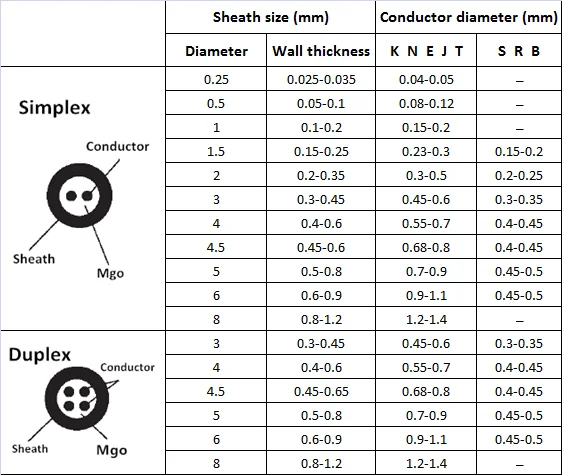

Product Features
Product Selection
|
Mark |
OD |
Temperature range (℃) |
|
|
NiCr-NiSi (K) |
SS304 |
0.5-1.0 |
400 |
|
SS321 |
1.5-3.2 |
600 |
|
SS316 |
4.0-8.0 |
800 |
|
|
0.5-1.0 |
500 |
||
|
SS310 |
0.5-3.2 |
800 |
|
| INCONEL 600 | 4.0-6.4 | 900 | |
|
8.0-12.7 |
1000 |
||
|
NiCrSi-NiSi (N) |
SS304 |
0.5-1.0 |
400 |
| SS321 | 1.5-3.2 | 600 | |
|
SS316 |
4.0-8.0 |
800 |
|
| 0.5-1.0 | 500 | ||
| SS310 | 1.5-3.2 | 800 | |
| INCONEL 600 |
4.0-6.4 |
900 | |
|
8.0-12.7 |
1000 | ||
|
NiCr-CuSi (E) |
SS304 |
0.5-1.0 |
400 |
|
SS321 |
1.5-3.2 |
500 |
|
|
SS316 |
4.0-8.0 |
800 |
|
|
Fe-CuNi (J) |
SS304 |
1.0 |
300 |
| SS321 |
1.5-3.2 |
500 |
|
| SS316 |
4.0-8.0 |
800 |
|
|
Cu-CuNi (T) |
SS304 |
1.0 |
-300 |
| SS321 |
1.5-3.2 |
100-200 | |
| SS316 |
4.0-8.0 |
100-350 |

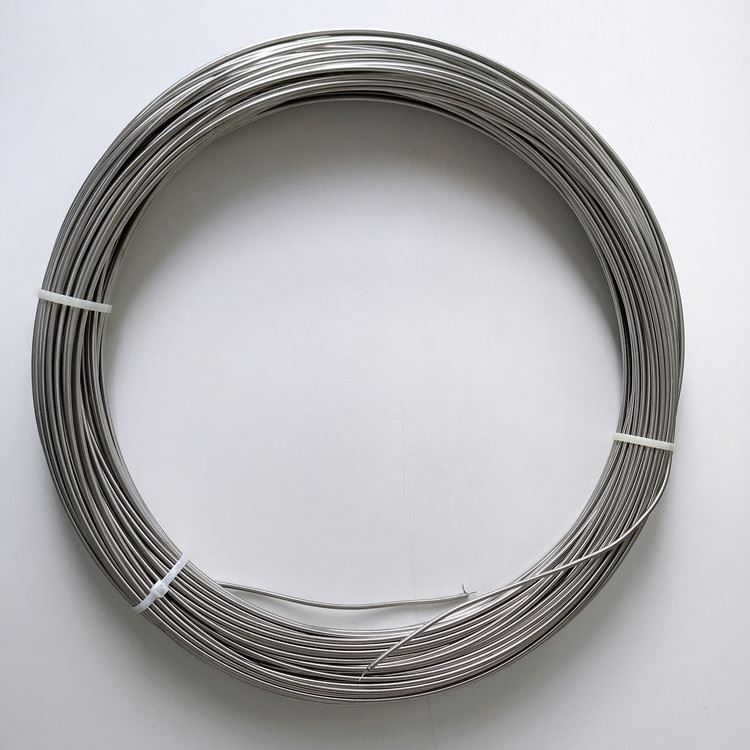

Products Pictures
